Torque Specifications

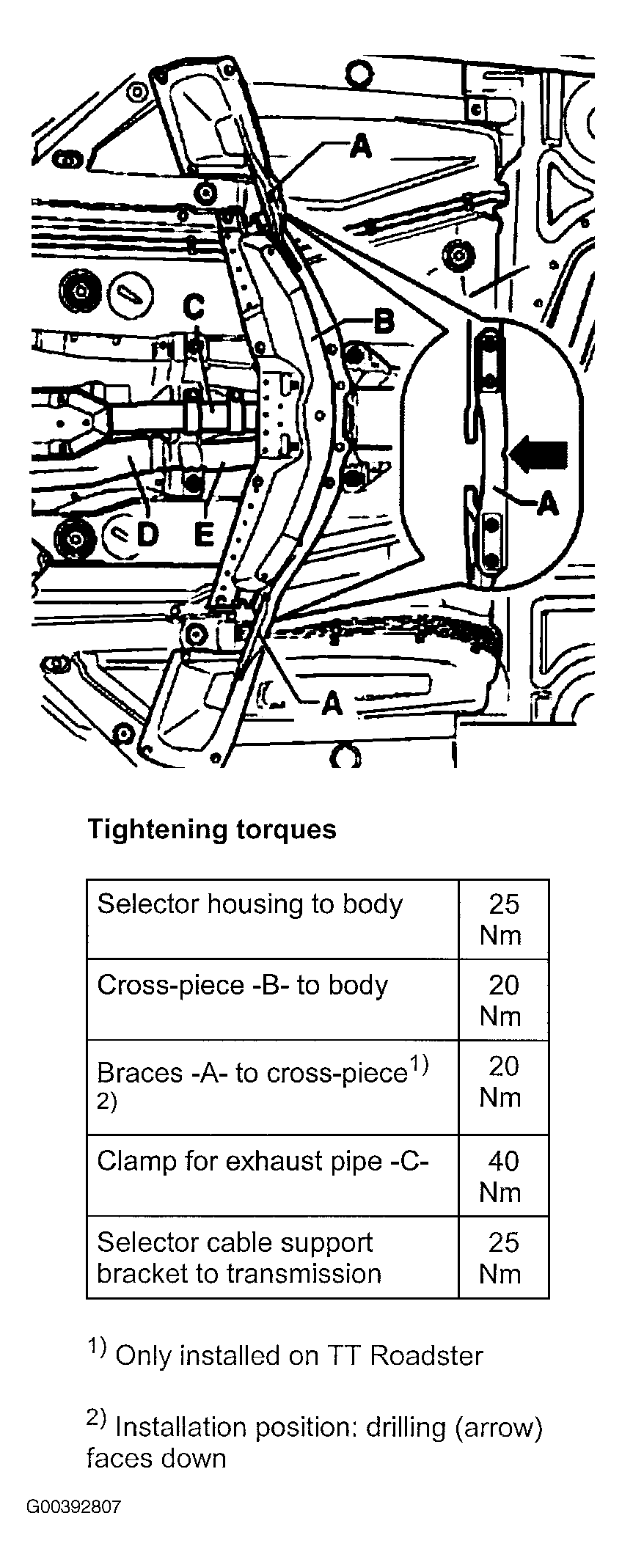

Fig 1: Shift Mechanism & Under Body Component Torque Specifications Table

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Drive Flange To Transmission Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

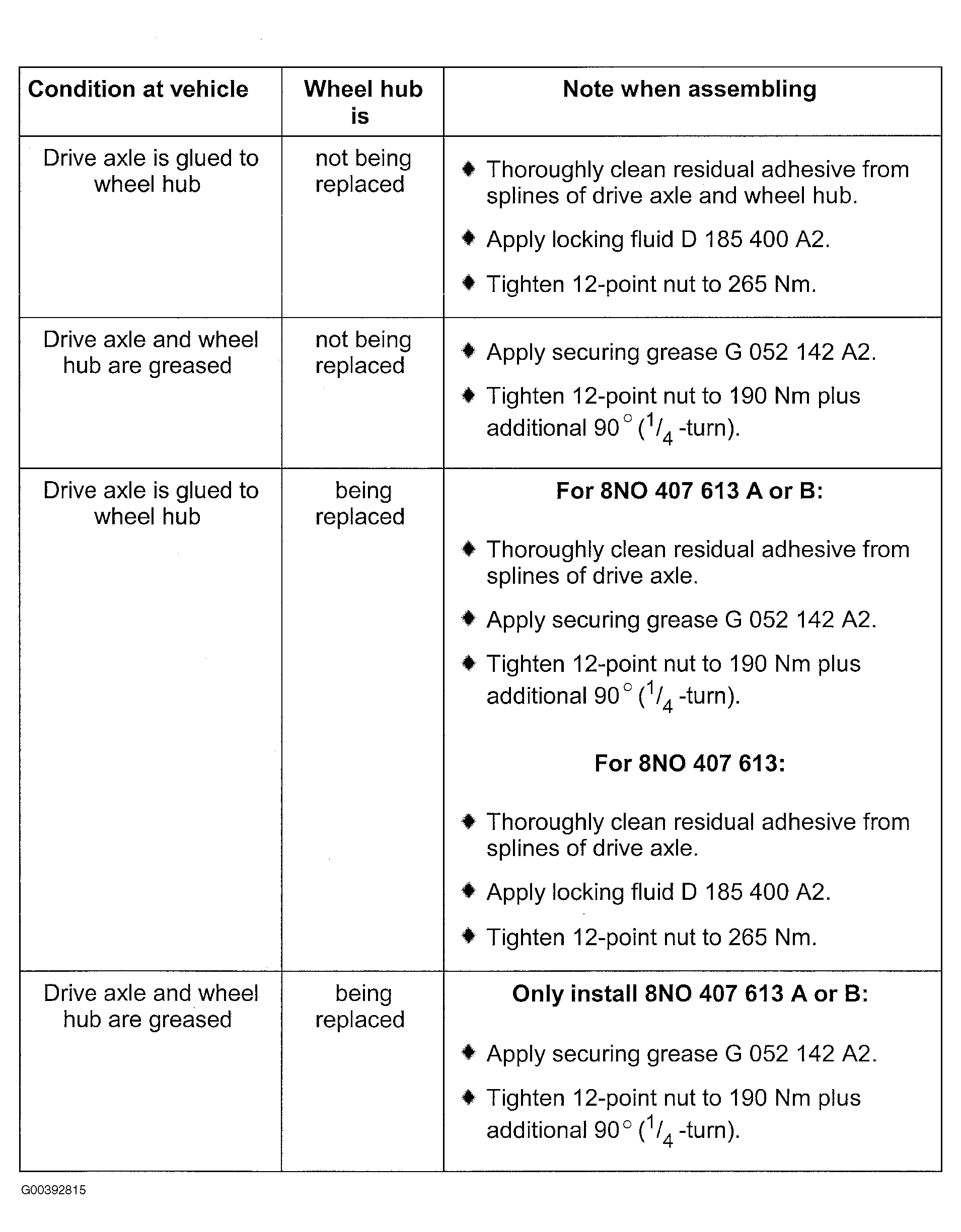

Fig 3: Drive Axle Torque Specifications

Courtesy of AUDI OF AMERICA, INC.
