Checking signal wire

Connect multimeter for voltage measurement as follows:

CMP SENSOR CIRCUIT TEST: SIGNAL WIRE

Harness connector Terminal	Measure to
2	Engine Ground (GND)

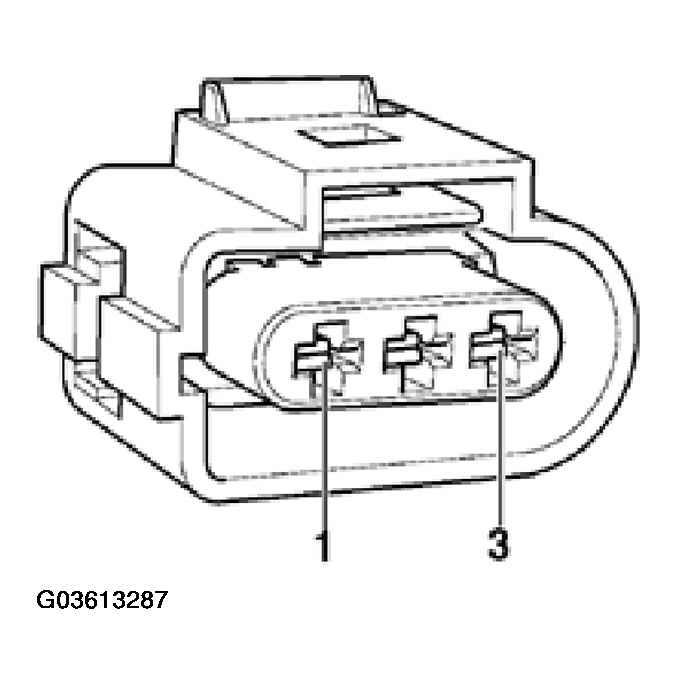

Fig 1: Identifying CMP Sensor Harness Connector Terminals

Courtesy of AUDI OF AMERICA, INC.
