Section 7 (Servicing - M/T (01E))
›
Torque Specifications
Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

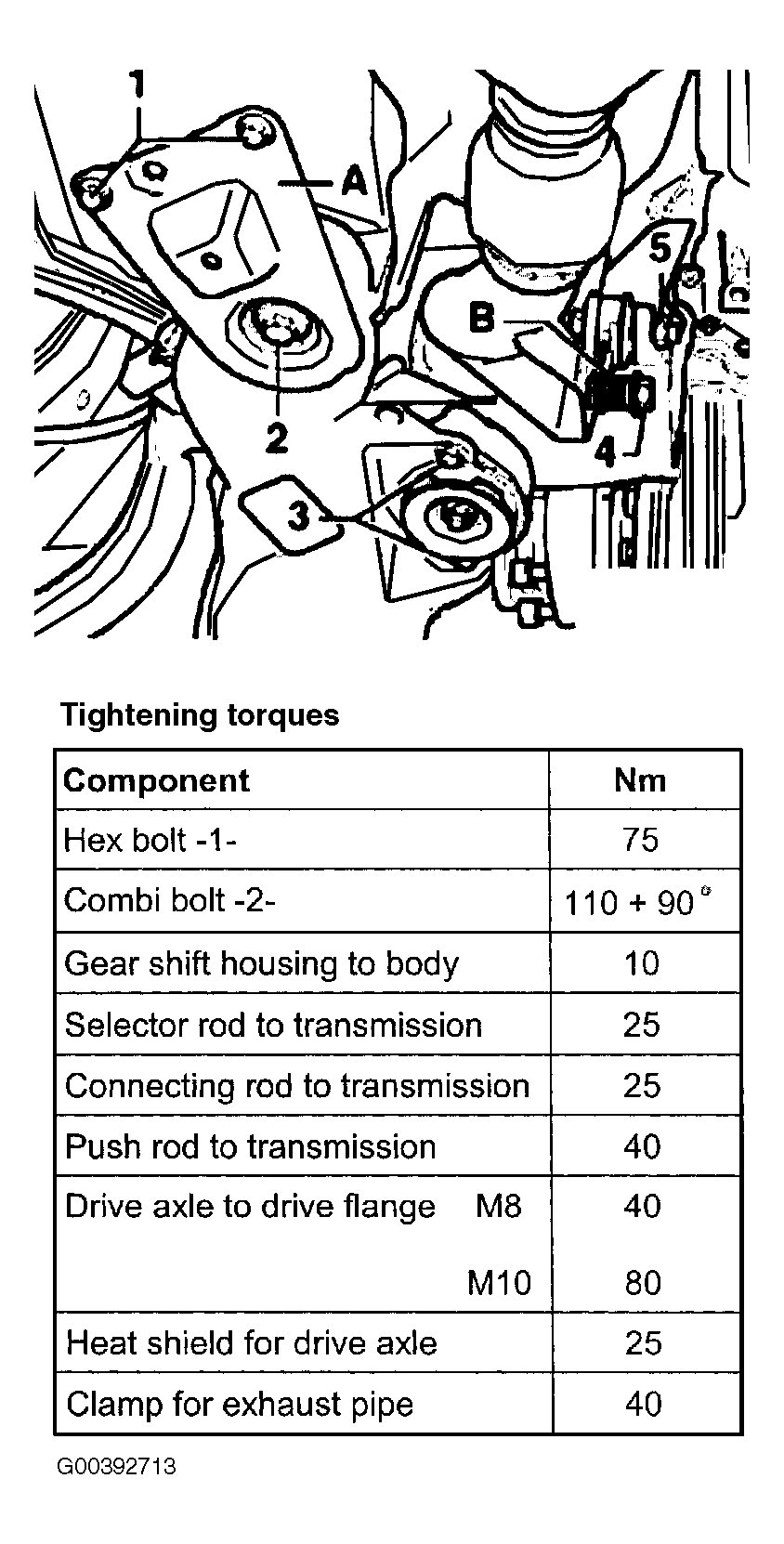

Fig 1: Shifter Mechanism Replacement Components & Subframe-To-Body Torque Specifications
Courtesy of AUDI OF AMERICA, INC.

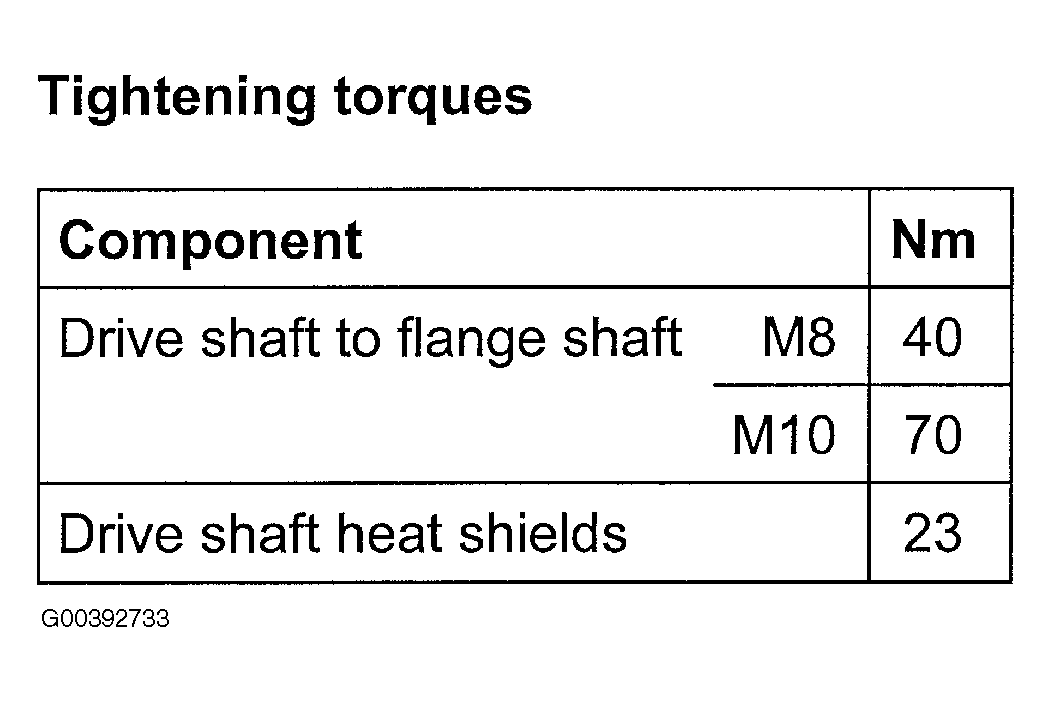

Fig 2: Drive Axle Flange To Transmission & Heat Shield Torque Specifications
Courtesy of AUDI OF AMERICA, INC.
