Work sequence

Connect vehicle diagnostic, testing and information system VAS 5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS 5051, CONNECTING AND SELECTING FUNCTIONS and select vehicle system "01 - Engine electronics" from list. Engine must be idling.

Indicated on VAS 5051:

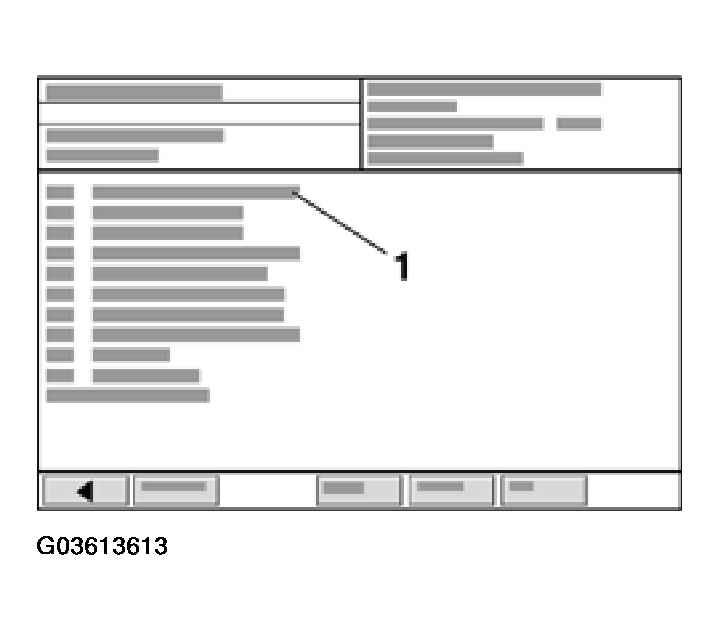

Fig 1: Scan Tool VAS 5051 Display - Checking Knock Control (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

From list -1- select diagnostic function "08 - Reading measured value block".

Indicated on VAS 5051:

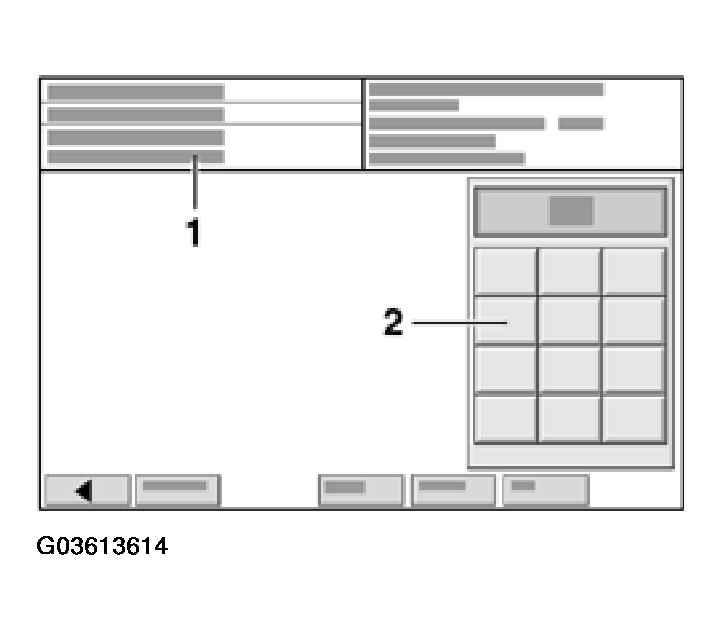

Fig 2: Scan Tool VAS 5051 Display - Checking Knock Control (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

1 - Enter display group

Use keypad -2- to enter "020" for "Display group number 020" and confirm by touching Q key.

Indicated on VAS 5051:

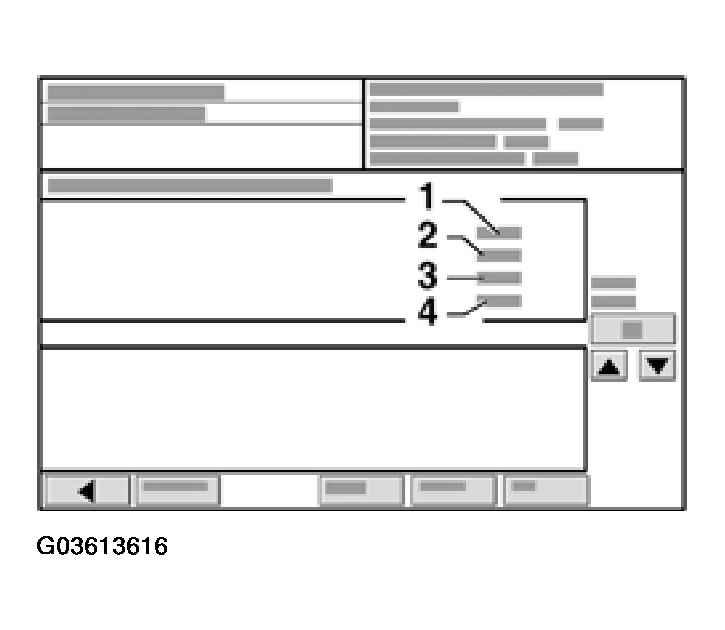

Fig 3: Scan Tool VAS 5051 Display - Checking Knock Control (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Check display in zones -1- to -4-.

DISPLAY GROUP 020: IGNITION - KNOCK CONTROL WHILE DRIVING

	Display zones
	1	2	3	4
Display group 020: Ignition - Knock control while driving
Display	xx.x °CA	xx.x °CA	xx.x °CA	xx.x °CA
Significance	Ignition timing retard/cylinder 1 by knock control	Ignition timing retard/cylinder 2 by knock control	Ignition timing retard/cylinder 3 by knock control	Ignition timing retard/cylinder 4 by knock control
Specification	0...12 °CA	0...12 °CA	0...12 °CA	0...12 °CA
Note	Evaluation . See Evaluation of ignition timing retard

NOTE: The numerical values displayed in zones 1 to 4 represent the actual ignition timing retard by the knock control for the individual cylinders. The ignition timing is retarded in °CA (degrees crank angle).

Touch s key to switch to display group 021.

Indicated on VAS 5051:

Fig 4: Scan Tool VAS 5051 Display - Checking Knock Control (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Check display in zones -1- to -4-.

DISPLAY GROUP 021: IGNITION - KNOCK CONTROL WHILE DRIVING

	Display zones
	1	2	3	4
Display group 021: Ignition - Knock control while driving
Display	xx.x °CA	xx.x °CA	xx.x °CA	xx.x °CA
Significance	Ignition timing retard/cylinder 5 by knock control	Ignition timing retard/cylinder 6 by knock control	Ignition timing retard/cylinder 7 by knock control	Ignition timing retard/cylinder 8 by knock control
Specification	0...12 °CA	0...12 °CA	0...12 °CA	0...12 °CA
Note	Evaluation . See Evaluation of ignition timing retard

Terminate function "08 - Reading measured value block" by touching <-- key.
