Radio/CD functions

NOTE: The following list refers to items in Fig 1 .
  1. 2 - Increase volume
  2. 3 - Decrease volume
  3. 5 - Radio/Telephone switch
  4. 6 - CD track back
  5. 7 - CD track forward

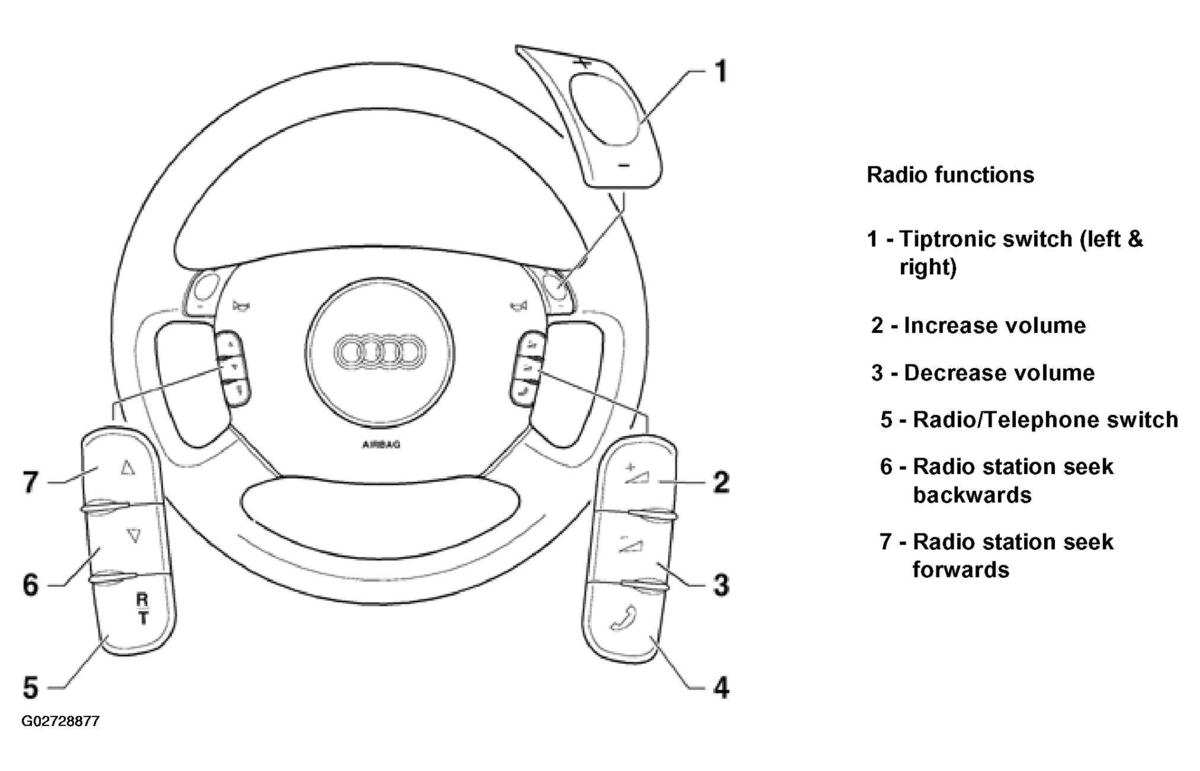

    Fig 1: View Of Multi-Function Steering Wheel Switch/Button Functions (Radio Functions)
    G02728877Courtesy of AUDI OF AMERICA, INC.
