Center console, removing and installing: Notes

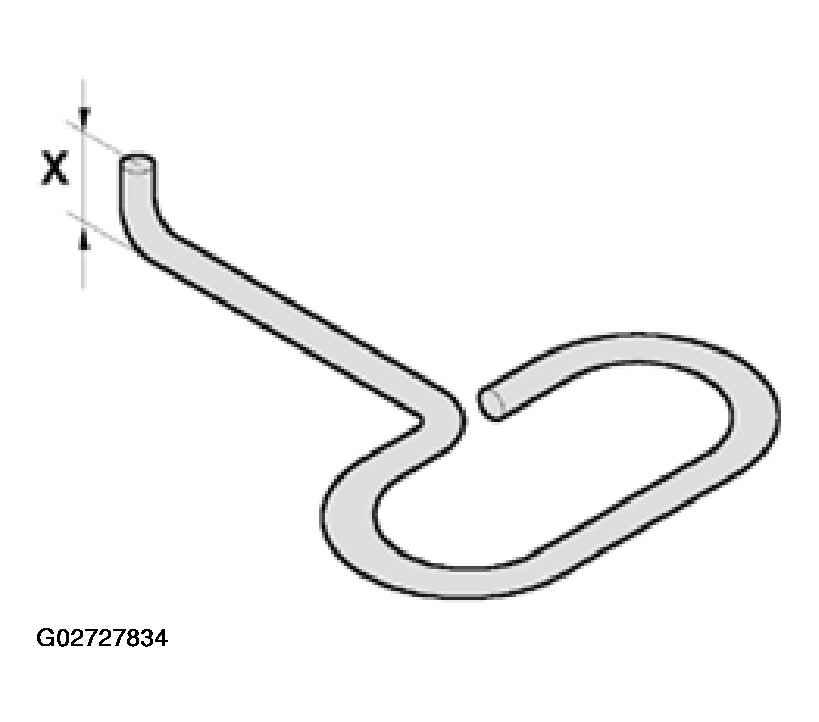

Make auxiliary tool for disassembly of outlet.
Bend wire of 3 mm diameter as shown in illustration.

Fig 1: Bending Wire To Dimension -x-

G02727834

Courtesy of AUDI OF AMERICA, INC.

Dimension -x- = 6 mm
Remove speaker mounting for telephone. See CENTER CONSOLE AND CENTER ARMREST WITH TELEPHONE, INSTALLATION .
Position seats all the way back.
Remove floor left and right cover. See FLOOR PAD FRONT, REMOVING AND INSTALLING .
Turn accelerator pedal stop 1/4 revolution (90°) further.

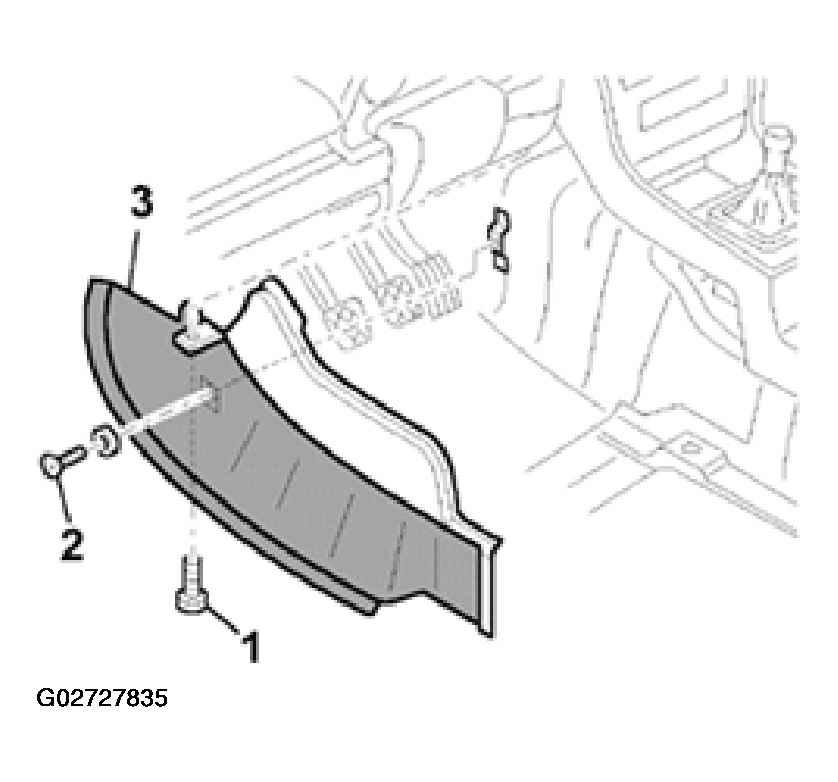

Remove screws -1- and -2-.
Remove trim left for center console -3- (to remove, slide trim forward and unhook from back).

Fig 2: Removing Screws & Trim For Center Console

G02727835

Courtesy of AUDI OF AMERICA, INC.

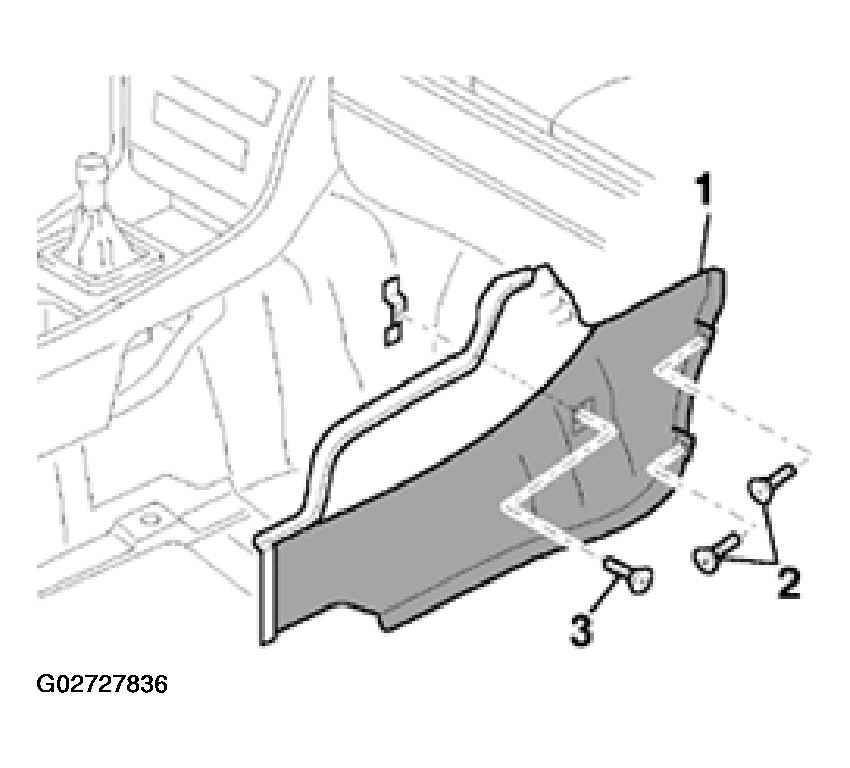

Remove screws -2- and -3-. See Fig 3.
The front screws -2- can be reached by turning back floor covering.
Remove right-side trim for center console -1-.

Fig 3: Removing Screws & Right-Side Trim For Center Console

G02727836

Courtesy of AUDI OF AMERICA, INC.

To remove, slide trim forward and unhook from back.

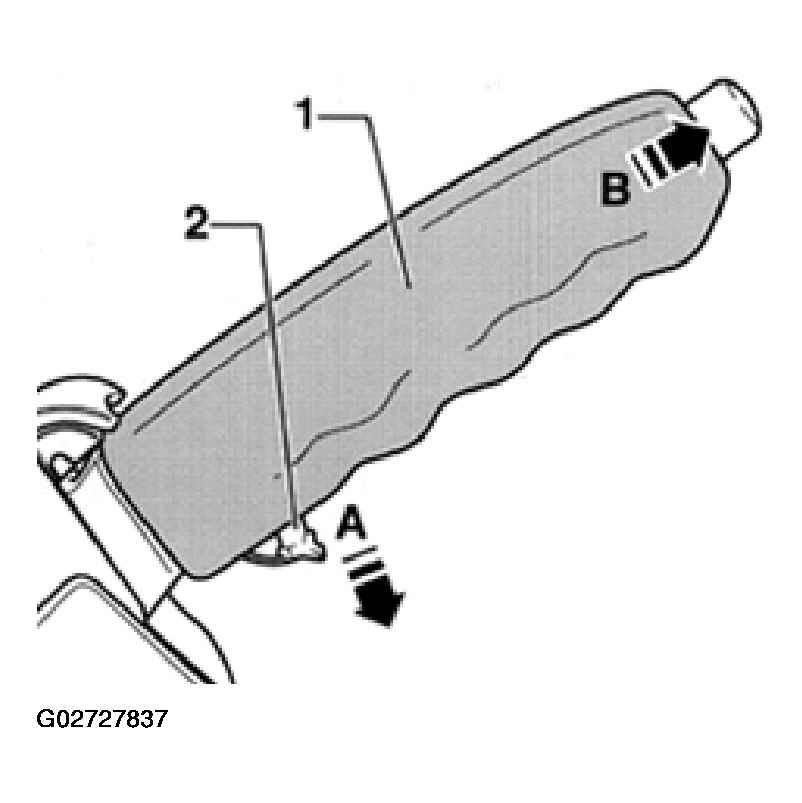

Pull up parking brake lever as far as possible.
Pry out lock pin -2- in direction of (arrow -A-). See Fig 4.
Remove parking brake lever handle -1- in direction of (arrow -B-).

Fig 4: Prying Out Lock Pin & Removing Parking Brake Lever Handle

G02727837

Courtesy of AUDI OF AMERICA, INC.

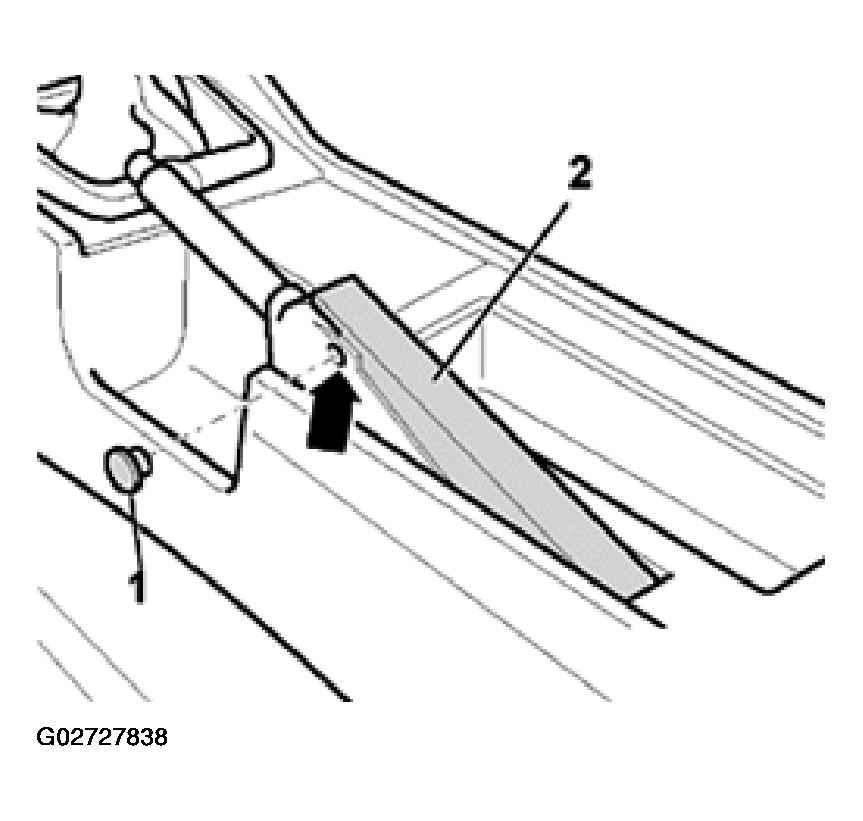

Pry off cover -1- and loosen lock bolt (arrow) approx. 2 rotations. See Fig 5.
Remove trim plate for trim -2- from front.

Fig 5: Prying Off Cover & Removing Trim Plate For Trim From Front

G02727838

Courtesy of AUDI OF AMERICA, INC.

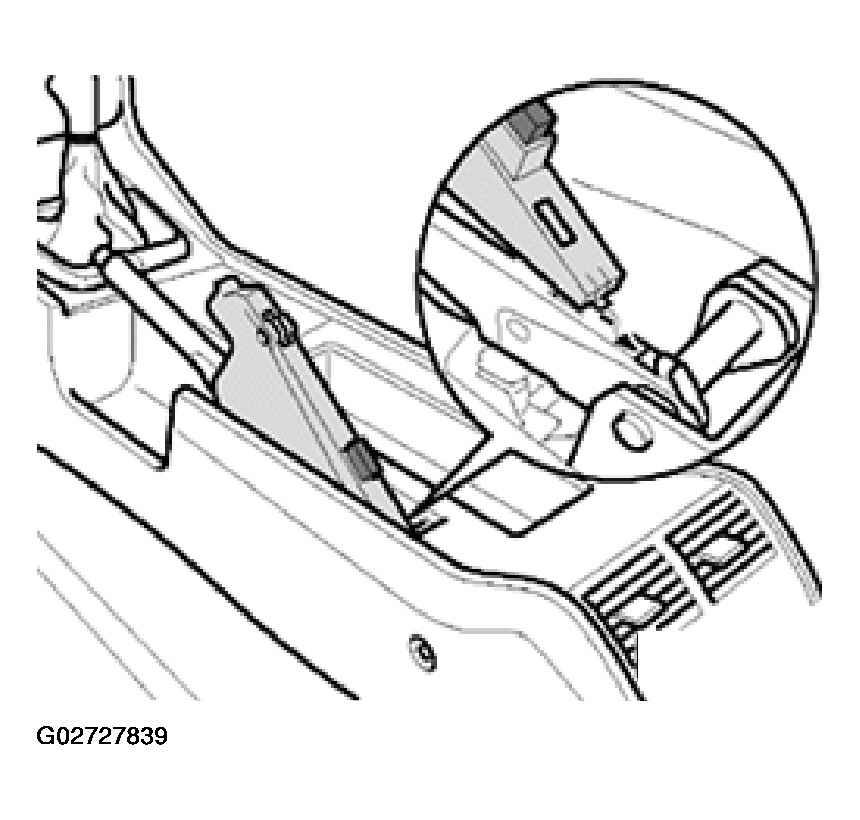

Remove parking brake trim.
Note the retaining tab at the rear/narrow end of the trim.

Fig 6: Removing Parking Brake Trim

G02727839

Courtesy of AUDI OF AMERICA, INC.
