Plenum E-Box Relay & Fuse Panel: Notes

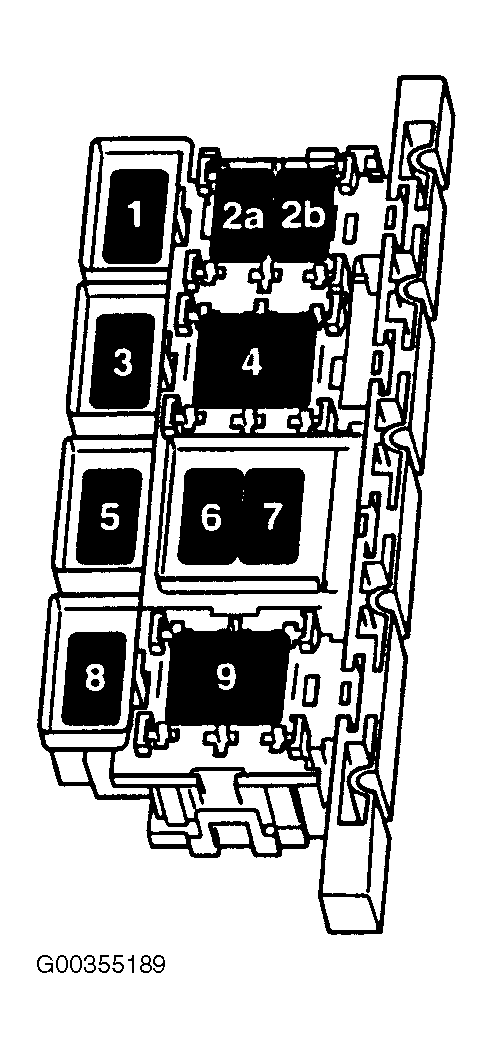

Plenum E-Box Relay and Fuse Panel is located to the left of ECM in plenum. See Fig 1. For fuse and relay positions within relay and fuse panel, see Fig 2. For relay number, position number and circuits protected, see RELAY IDENTIFICATION (PLENUM E-BOX RELAY & FUSE PANEL) . For fuse position number, fuse number, amperage rating and circuits protected, see FUSE IDENTIFICATION (PLENUM E-BOX RELAY & FUSE PANEL) .
