Component Locations
WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Fuse Panel | In Passenger Side Footwell, Right Side |

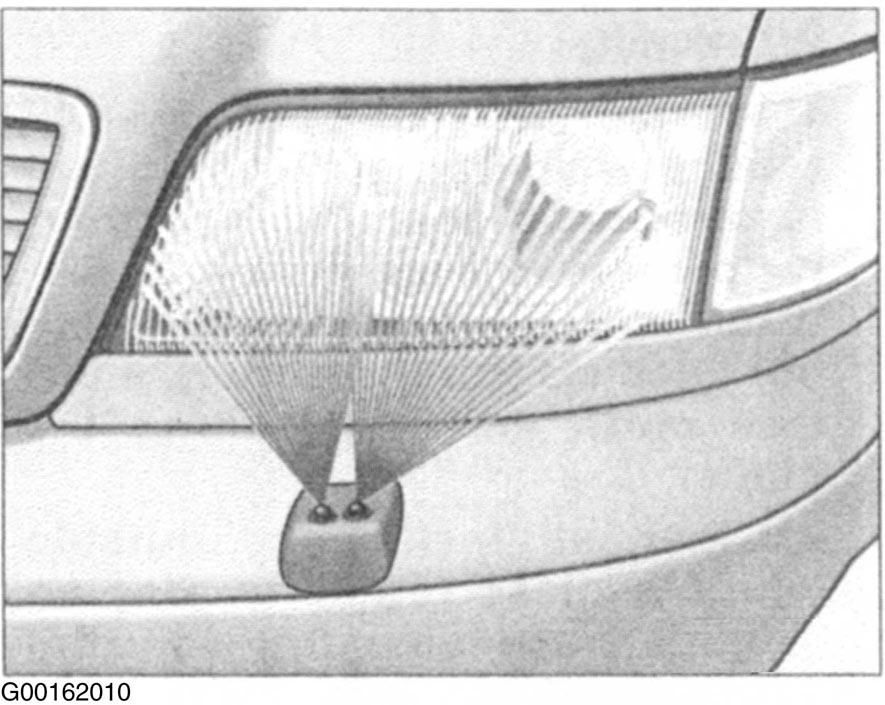

| Headlight Washer Nozzles | On Front Bumper, See Figure |

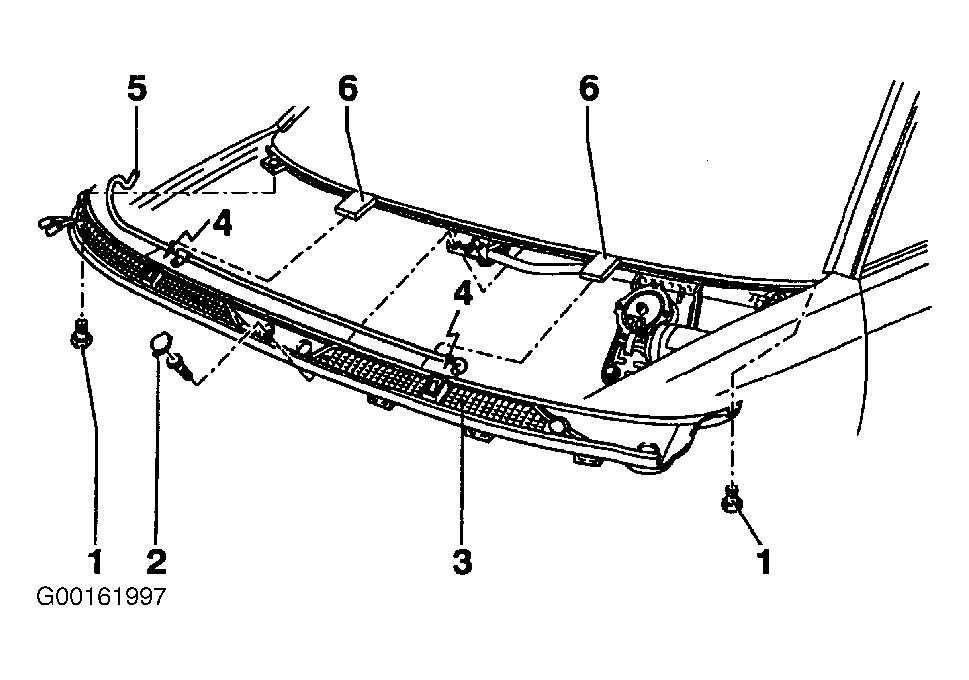

| Wiper Motor | Under Windshield Trim, See Figure |

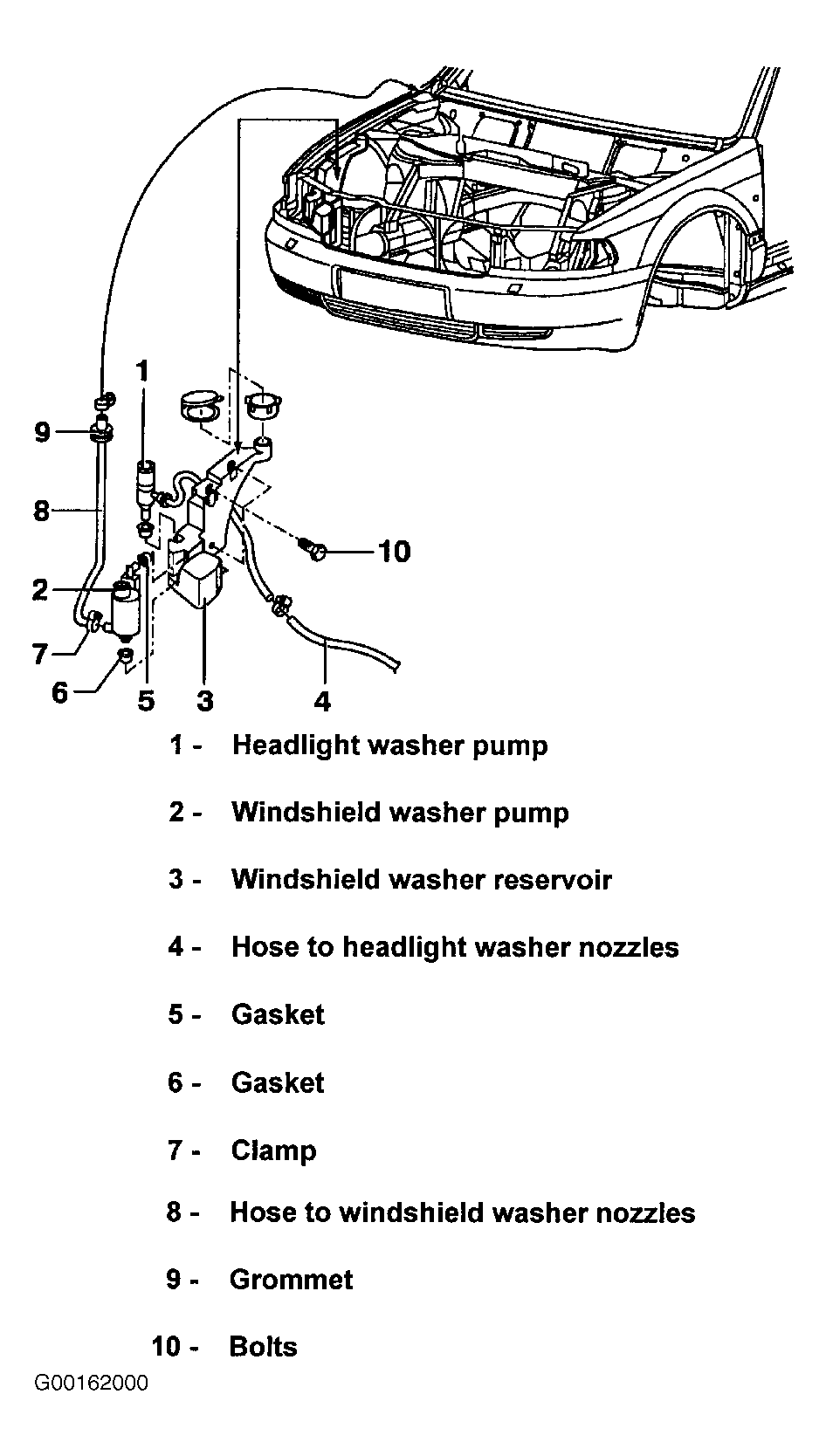

| Windshield & Washer Fluid Container | In Engine Compartment, Right Side, See Figure |
| Windshield Washer Nozzle | Under Windshield Trim, See Figure |

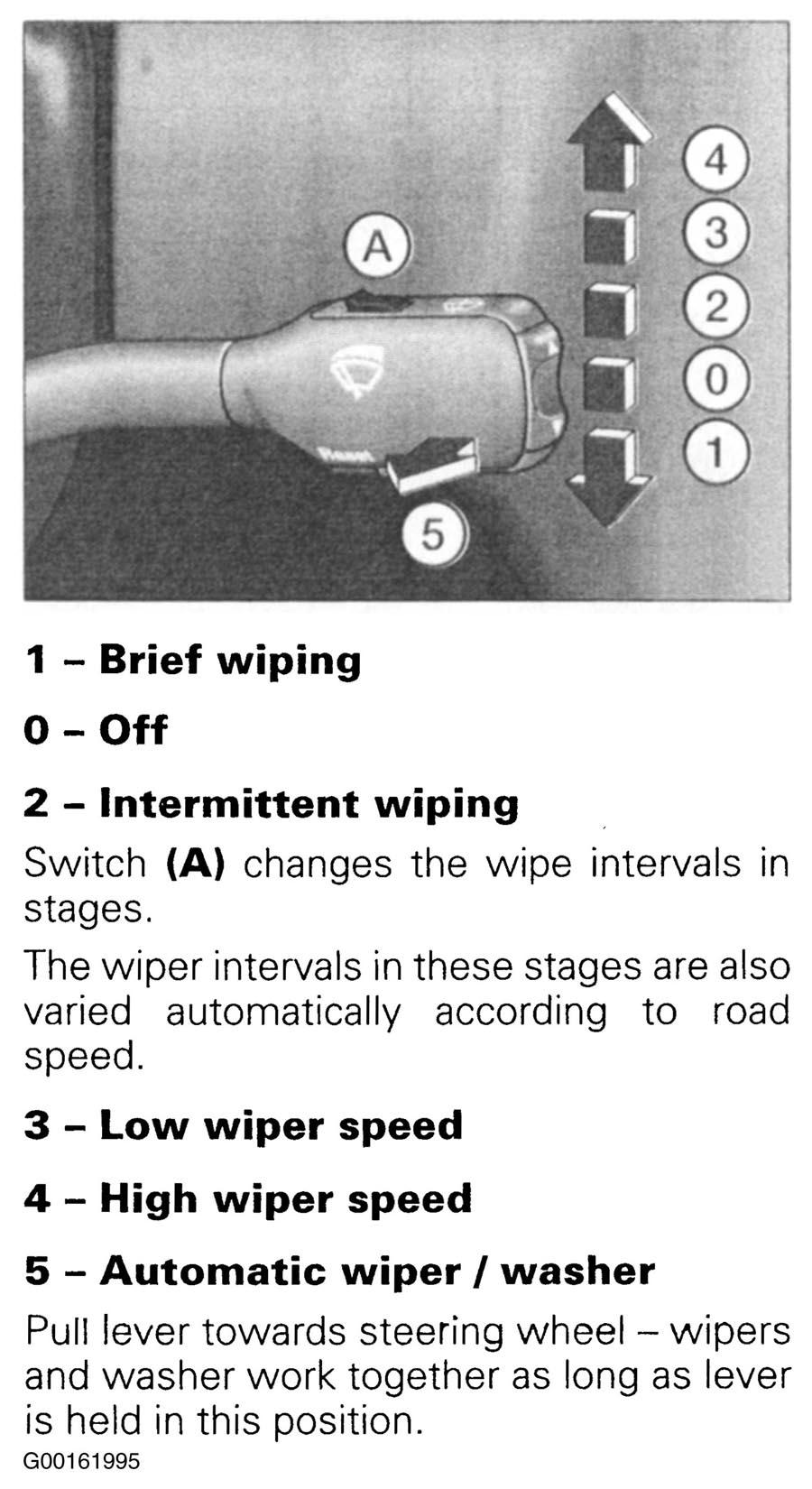

| Wiper/Washer Switch | On Steering Column, See Figure |
