Selector Lever Cable: Checking

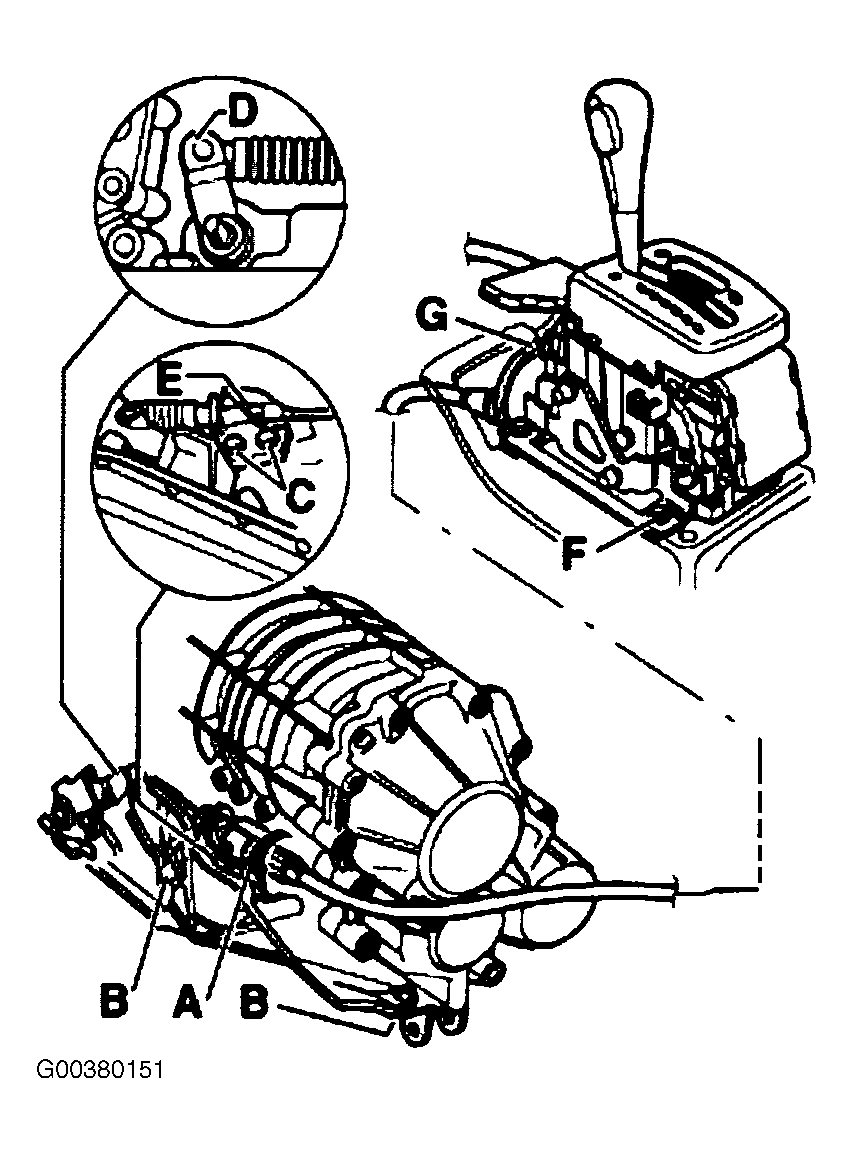

- Press selector lever cable from ball stud (D) of selector lever shaft on transmission. See Fig 1
. Move selector lever from "P" to "2" position. Selector lever must be easy to move. If necessary, replace selector lever cable, or repair selector lever mechanism. See SELECTOR LEVER CABLE
under REMOVAL & INSTALLATION.
Courtesy of AUDI OF AMERICA, INC.
- Move selector lever to "P" position. Move selector lever on transmission to "P" position (rear most position). Parking lock must engage and selector lever cable should be able to be pressed onto selector lever on transmission. If necessary, adjust selector lever cable. See Adjustments
.
