Compressor, removing and installing: Removing

NOTE: The following list refers to items in Fig 1.

1. Flange nut
   1. Tightening torque: 10Nm
2. Shielding piece
3. Securing piece
4. Flange bolt
   1. Tightening torque: 23Nm
5. Compressor unit
6. Flange nut
   1. Tightening torque: 23Nm
7. Spiral spring
8. Damper element
   1. Tightening torque of nut: 6 Nm

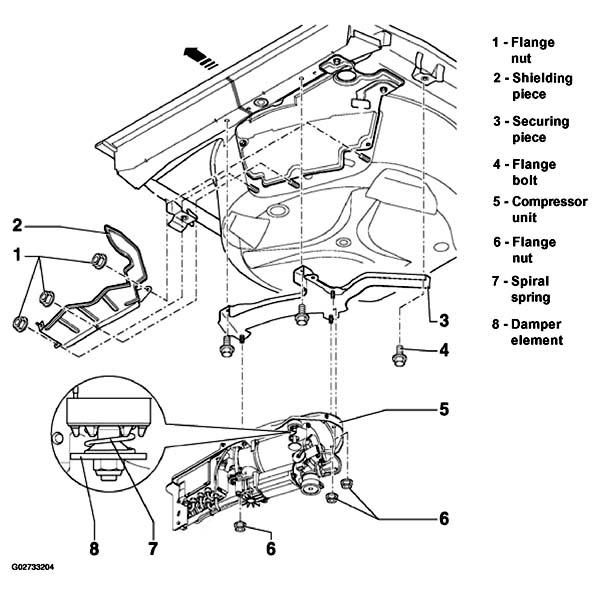

Fig 1: Removing And Installing Compressor (Allroad)

Courtesy of AUDI OF AMERICA, INC.

• Perform a system ventilation. See SYSTEM VENTING (ALLROAD) .
• Remove stabilizer bar. See STABILIZER BAR & BUSHINGS .
• Loosen flange nut for shielding piece.
• Loosen hose at shielding piece.
• Remove shielding piece.
• Loosen hose -1- and connector -2- at compressor.

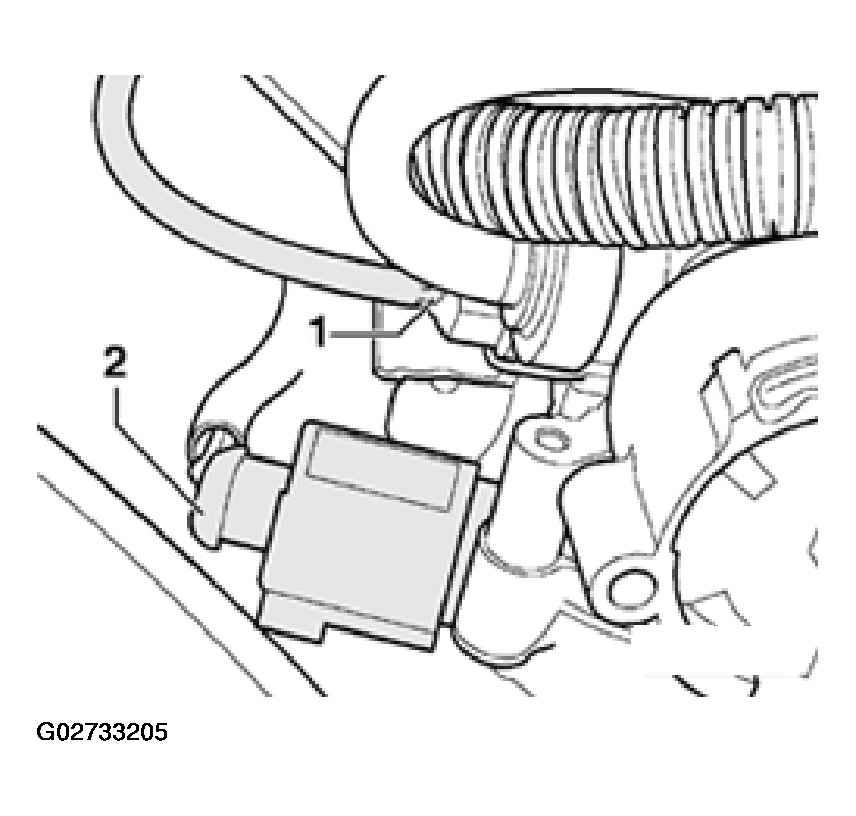

  Fig 2: Locating Hose -1- And Connector -2- At Compressor (Allroad)

  Courtesy of AUDI OF AMERICA, INC.
• Loosen flange nuts.
  NOTE: Nuts at damper element must not be loosened!
• Remove compressor unit.
