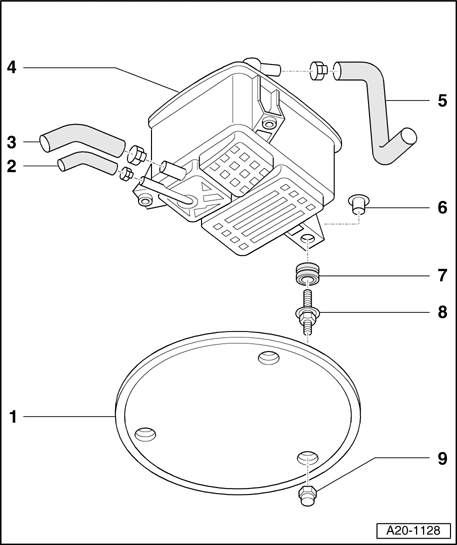

Component Overview

1 - Cover

• For EVAP canister

2 - Vent line

• To Evaporative Emission (EVAP) Canister Purge Regulator Valve N80

3 - Vent line

• To fuel tank

4 - EVAP canister

• Component location: Below, in spare tire well at vehicle floor

5 - Connection hose

• Leak Detection Pump (LDP)/EVAP canister

6 - Socket

7 - Rubber grommet

8 - Pin bolt - 16 Nm

9 - Cap nut - 9 Nm
