Component overview: Notes

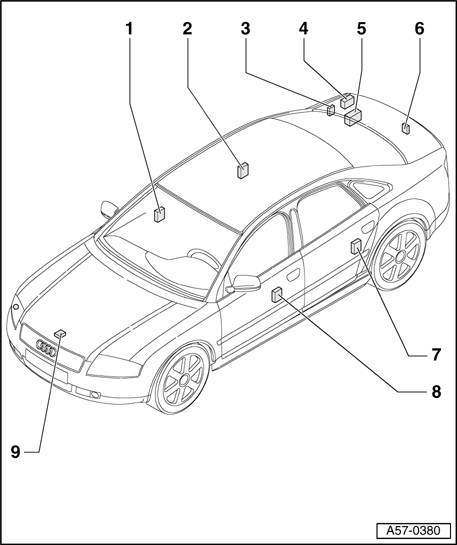

Fig 1: Central Locking System Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front Passengers Door Control Module -J387-

2 - Door control module, rear, right -J389-

3 - Fuel Tank Lid Unlock Motor -V155-

4 - Rear Lid Control Module -J605-

5 - Comfort System Central Control Module -J393-

Component location, in right rear side panel → Central control module for comfort system .

6 - Rear Lid Unlock Motor -V155-

7 - Door control module, rear, left -J388-

8 - Drivers Door Control Module -J386-

9 - Front Hood Switch -F266-
