Torque Converter, Checking

Check torque converter hub (arrow) for scoring. See Fig 1 .

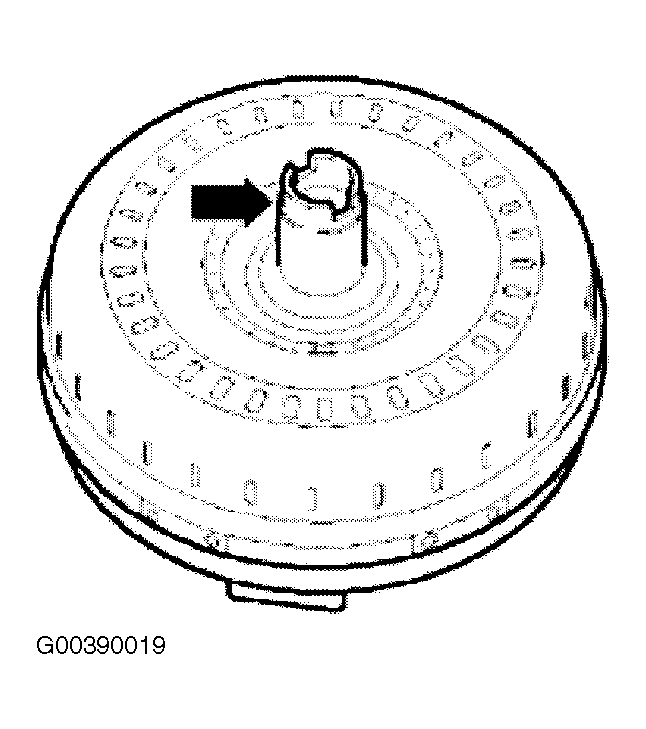

Fig 1: Inspecting Torque Converter Hub

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: The torque converter is welded together and must be replaced as a complete unit if it is damaged or faulty.
