Selector Lever Handle

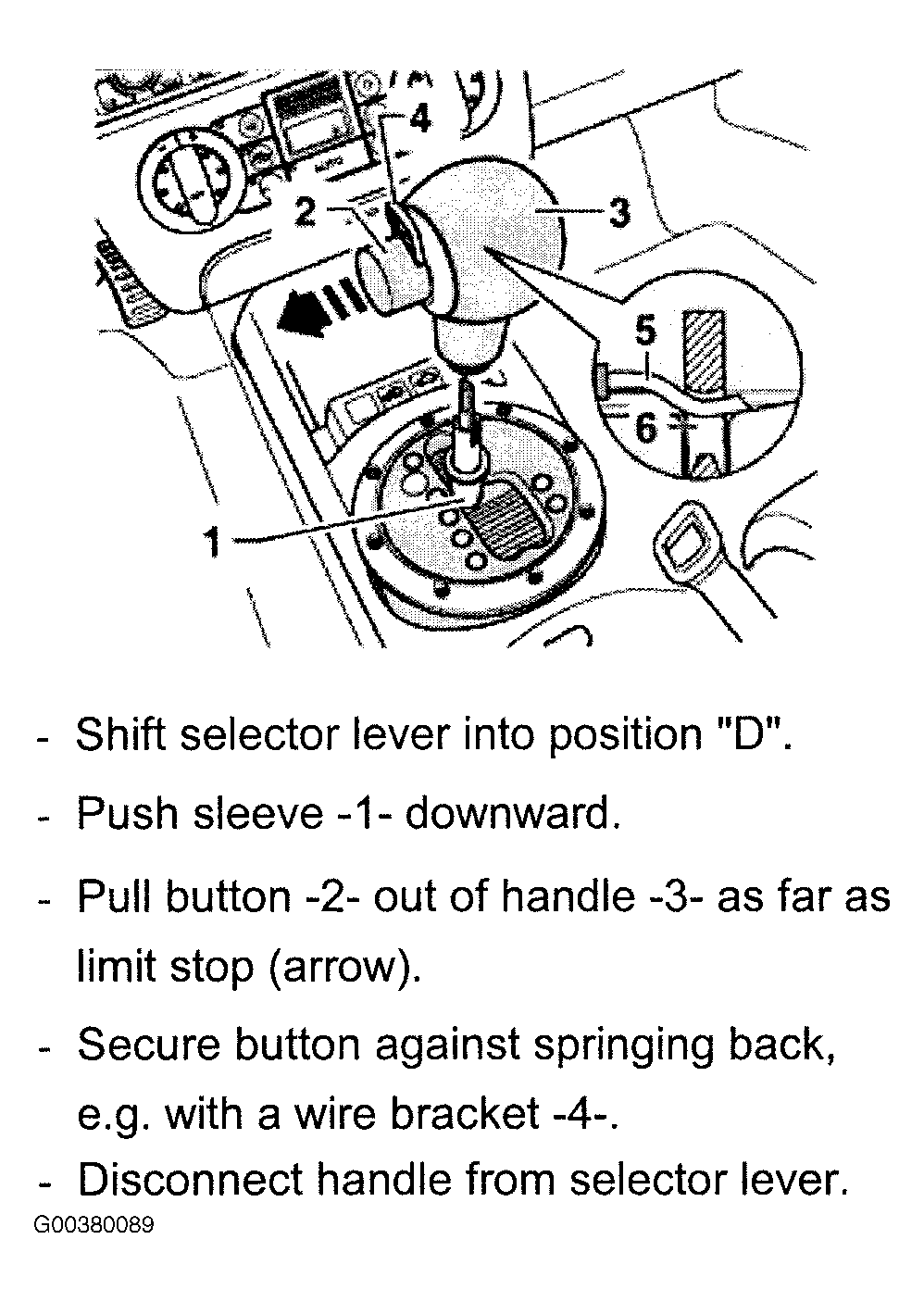

Fig 1: Removing Selector Lever Handle
Courtesy of AUDI OF AMERICA, INC.

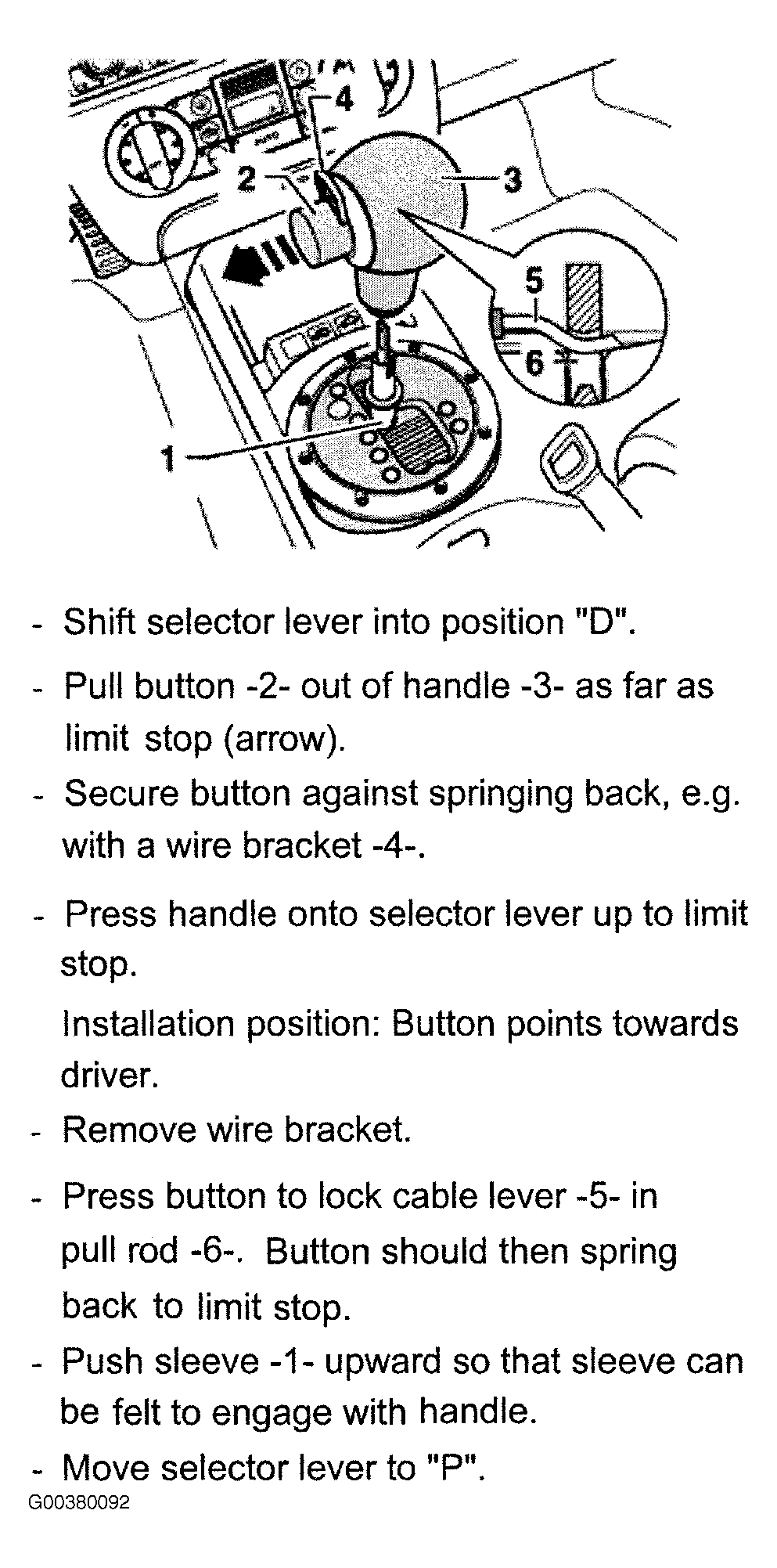

Fig 2: Installing Selector Lever Handle
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
