Electrical Component Locator: Grounds

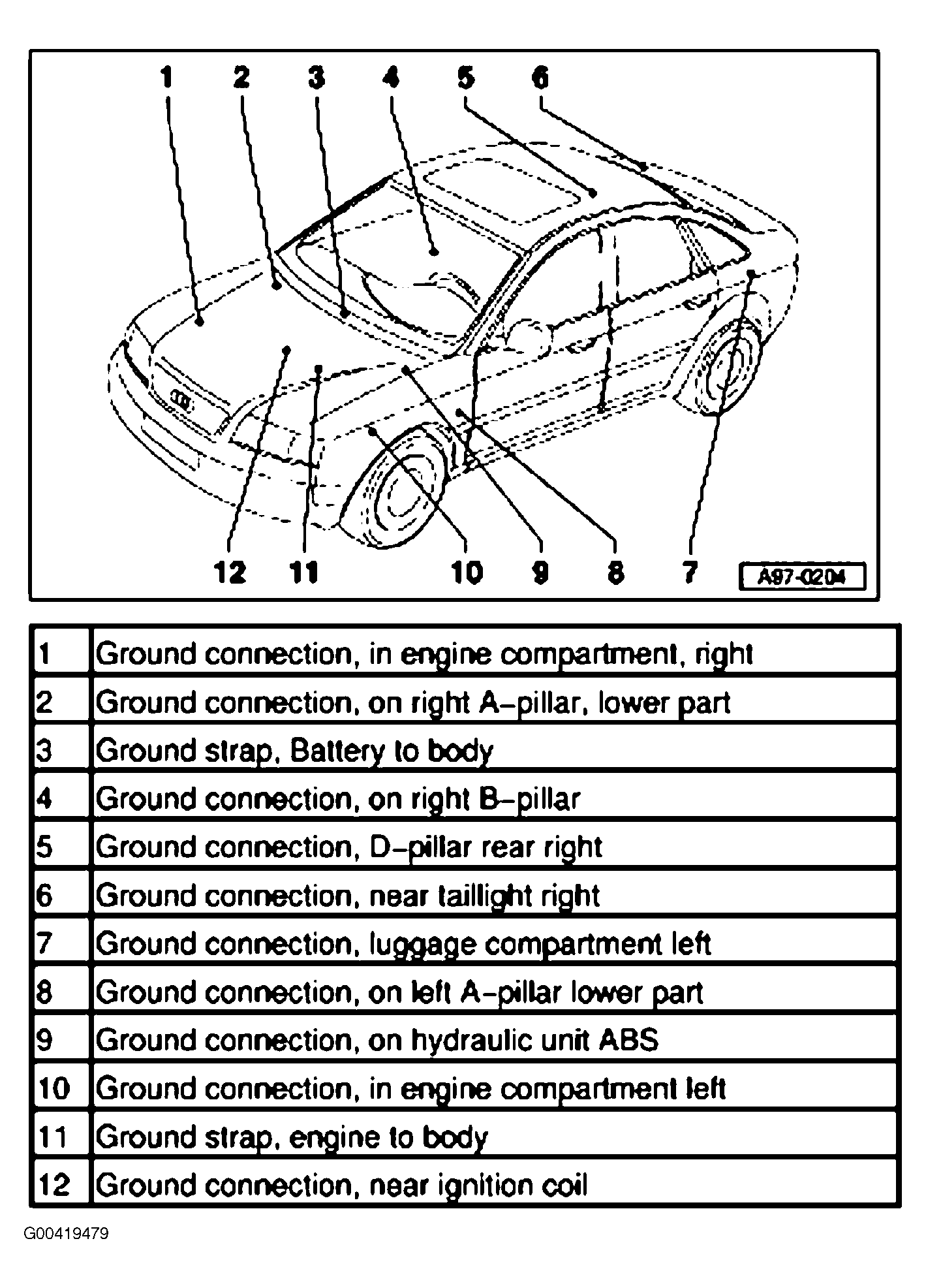

GROUNDS LOCATION
| Component | Location |
|---|---|
| G1 | Right side of engine compartment. See Figure . |
| G2 | On lower right "A" pillar. See Figure . |
| G3 | Battery ground strap. See Figure . |
| G4 | Right "B" pillar. See Figure . |
| G5 | Right "D" pillar. See Figure . |
| G6 | Near right taillight. See Figure . |
| G7 | Left side of luggage compartment. See Figure . |
| G8 | Lower left "A" pillar. See Figure . |
| G9 | On ABS hydraulic unit. See Figure . |
| G10 | Left side of engine compartment. See Figure . |
| G11 | Engine to body ground strap. See Figure . |
| G12 | Near ignition coil. See Figure . |
