Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

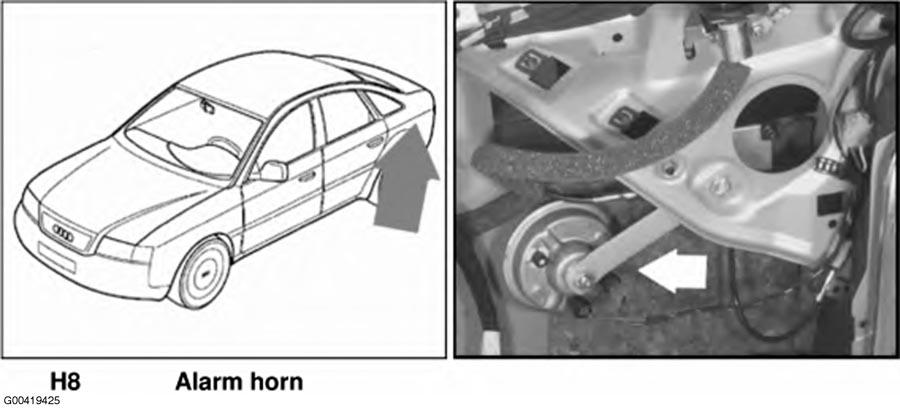

| Alarm Horn | Left rear of vehicle. See Figure . |
| Antenna For Tire Pressure Check (Left Front) | In left front wheel well. See Figure . |
| Antenna For Tire Pressure Check (Left Rear) | In left rear wheel well. See Figure . |
| Antenna For Tire Pressure Check (Right Front) | In right front wheel well. See Figure . |
| Antenna For Tire Pressure Check (Right Rear) | In right rear wheel well. See Figure . |
| Coolant Fan Control (FC) Series Resistance | Left front of engine compartment. See Figure . |
| High Tone Horn | Left front of engine compartment. See Figure . |
| Ignition Coil | Front of engine compartment. See Figure . |
| Low Tone Horn | Right front of vehicle. See Figure . |
| Passenger's Airbag Igniter 1 | Behind right side of dash. See Figure . |
| Power Output Stage | Front of engine compartment. See Figure . |
| Seat Belt Tensioner Igniter (Left) | Base of left "B" pillar. See Figure . |
| Seat Belt Tensioner Igniter (Right) | Right "B" pillar. See Figure . |
