Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Power (Memory) Seat Circuit Breaker | On relay & fuse carrier at left side of dash. See Figure . |
| Power Seat Circuit Breaker | Right kick panel. See Figure . |

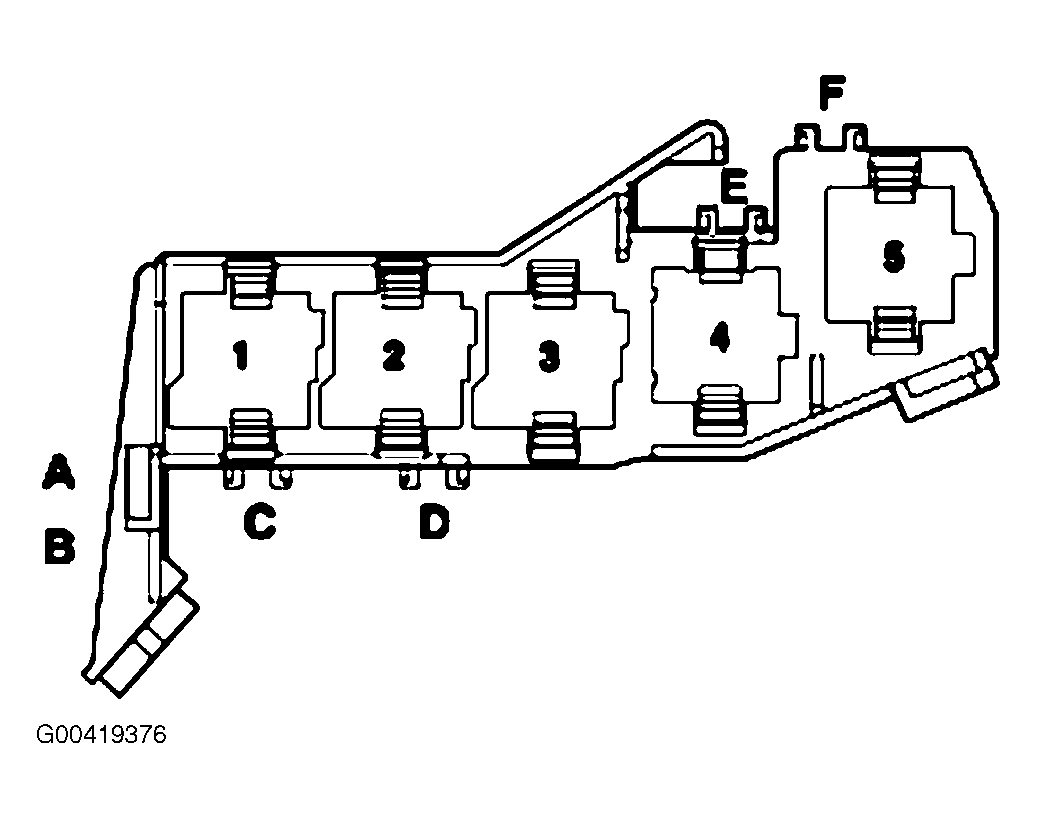

| Power Seat Circuit Breaker 1 (B) | Right kick panel. See Figure . |
| Power Seat Circuit Breaker 2 (D) | Right kick panel. See Figure . |

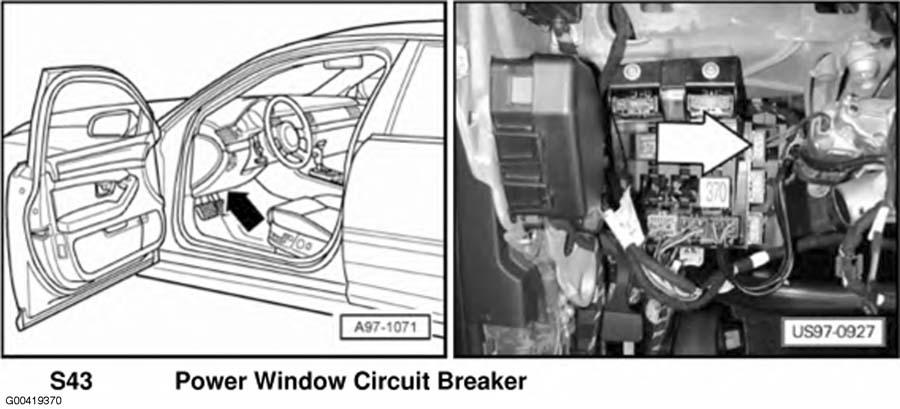

| Power Window Circuit Breaker | In fuse & relay carrier behind left side of dash. See Figure . |
