Accelerator Pedal Module, Version 1: Removing

Remove driver's side instrument panel cover. Refer to INSTRUMENT PANEL COVER .
Separate the electrical connector -2-.
Remove the screws -1- and -3-.

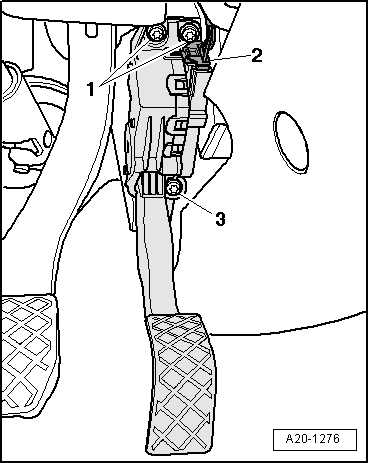

Fig 1: Accelerator Pedal Module Electrical Connector & Screws

GWWA20-1276

Courtesy of AUDI OF AMERICA, LLC

Remove accelerator pedal module.
