Electronic Damping Control Module Connector End View (J250, T47)

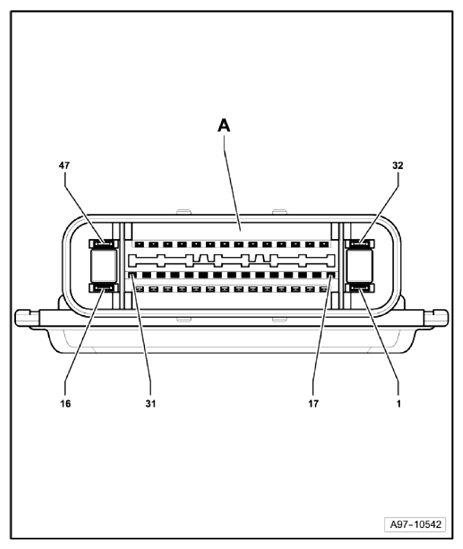

Fig 1: Electronic Damping Control Module Connector End View (J250, T47)
G10359744Courtesy of AUDI OF AMERICA, LLC
A 47-Pin Connector -T47-
