Airbag Control Module Connector End View (J234, T84, T84a)

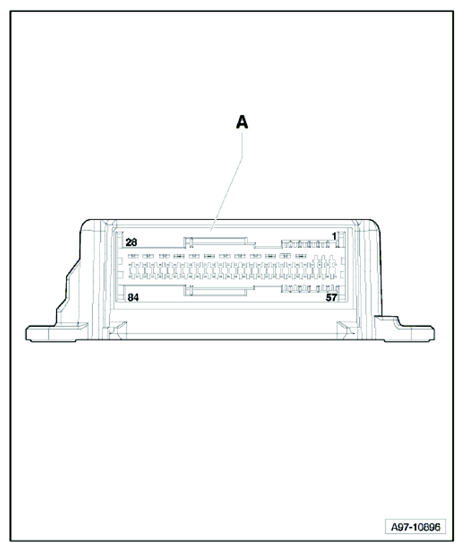

Fig 1: Airbag Control Module Connector End View (J234, T84, T84a)
G10359741Courtesy of AUDI OF AMERICA, LLC
A 84-Pin Connector -T84-
A 84-Pin Connector -T84a-
