Comfort System Central Control Module Connector End View (J393, T18, T8g, T6g)

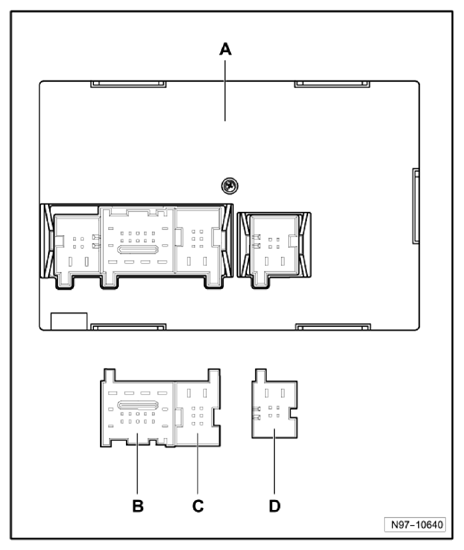

Fig 1: Comfort System Central Control Module Connector End View (J393, T18, T8g, T6g)
G10359748Courtesy of AUDI OF AMERICA, LLC
A Comfort System Central Control Module -J393- Connector
B 18-Pin Connector, brown -T18-
C 8-Pin Connector, black -T8g-
D 6-Pin Connector, black -T6g-
