Vehicle Electrical System Control Module Connector End View (J519, T52a, T52b, T52c)

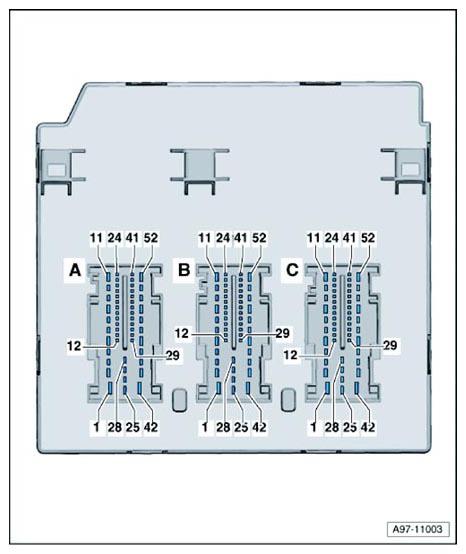

Fig 1: Vehicle Electrical System Control Module Connector End View (J519, T52a, T52b, T52c)
G10359736Courtesy of AUDI OF AMERICA, LLC
A 52-Pin Connector -T52a-
B 52-Pin Connector -T52b-
C 52-Pin Connector -T52c-
