General Information: Avant

Fig 1: Avant's Luggage Compartment Floor Covering (1) And Spare Wheel Well Cover Plate (2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment floor covering -1- and the spare wheel cover -2-.

All

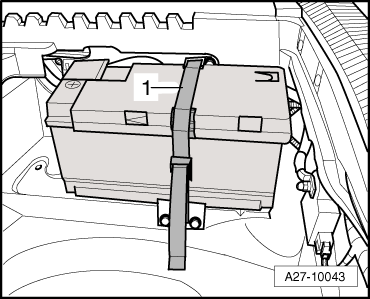

Fig 2: Battery Retaining Strap (1)

Courtesy of AUDI OF AMERICA, LLC

-- If present, open battery retaining band -1-.

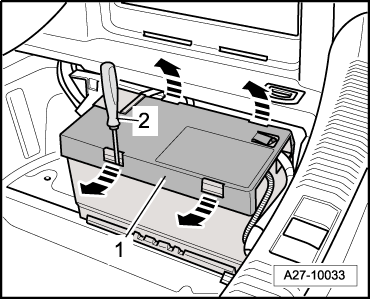

-- Release retaining clips -arrows- with a screwdriver -2- and remove battery ground cover -1-.

Fig 3: Negative Terminal Cover (1) And Retaining Clips (Arrows)

Courtesy of AUDI OF AMERICA, LLC
