Special Tools

Special tools and workshop equipment required

• Torque Wrench 50-200 NmVAG1332
• Open-Jaw Torque Wrench InsertVAG1923
• Locking PliersVAS6199

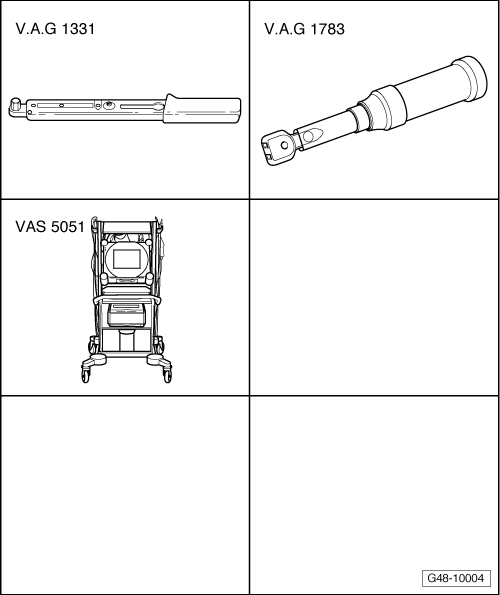

Special tools and workshop equipment required

• Torque Wrench 5-50 NmVAG1331
• Torque WrenchVAG1783
• Vehicle Diagnosis, Testing and Information SystemVAS5051B

Special tools and workshop equipment required

• Hose Clamps Up to 25 mm Dia.3094
  Fig 3: 3094 Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
• Spanner Wrench3212
  Fig 4: Identifying Pin Wench VAS 3212A

  Courtesy of AUDI OF AMERICA, LLC
• Special ScrewdriverT40056 A
  Fig 5: Identifying T8 Screwdriver T40056 A

  Courtesy of AUDI OF AMERICA, LLC

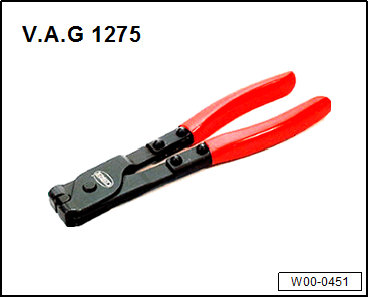

• Hose Clamp PliersVAG1275
  Fig 6: Hose Clamp Pliers VAG 1275

  Courtesy of AUDI OF AMERICA, LLC
• Open Ring Spanner Insert, AF 24 mm VAG1332/9
  Fig 7: Identifying Insertion Tool V.A.G 1332/9

  Courtesy of AUDI OF AMERICA, LLC
• Power Steering Test UnitVAG1402
  Fig 8: Identifying Power Steering Test Unit V.A.G 1402

  Courtesy of AUDI OF AMERICA, LLC
• AdapterVAG1402/3
  Fig 9: Adapter V.A.G 1402/3

  Courtesy of AUDI OF AMERICA, LLC
• Adapter HoseVAG1402/6 (qty. 2)
  Fig 10: Adapter Set V.A.G 1402/6

  Courtesy of AUDI OF AMERICA, LLC
• Used Oil Collection and Extraction DeviceVAG1782
  Fig 11: Engine and Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC
• Spring Type Clip PliersVAS5024 A
  Fig 12: Identifying Spring Clamps VAS 5024A

  Courtesy of AUDI OF AMERICA, LLC
• Drip Tray for VAS6100VAS6208
  Fig 13: Drip Tray For Shop Crane VAS 6208

  Courtesy of AUDI OF AMERICA, LLC
• Steering Centering BoltVAS6224
  Fig 14: Bolt For Steering Centering VAS 6224

  Courtesy of AUDI OF AMERICA, LLC
• Not illustrated:
• Engine Support Bridge10-222 A
• Engine Support Basic SetT40091
• Engine Support Supplement SetT40092
• Engine Support Supplement SetT40093
• AdapterVAG1402/2
• AdapterVAG1402/4
