Ignition Coils: Installing

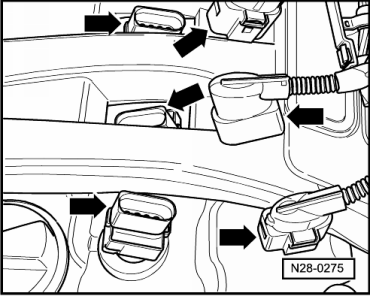

Fig 1: Identifying Ignition Coil With Power Output Stage

Courtesy of AUDI OF AMERICA, LLC

Installation is in reverse order of removal, note the following:

-- Place ignition coils in respective spark plug shaft so the straight connector sides fit with each other -arrows-.
