Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Notes

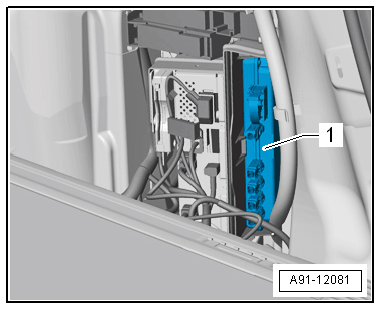

The Peripheral Camera Control Module -J928- -1- is located in the luggage compartment on the right side behind the luggage compartment side trim panel.
-- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault Finding" .
Use the Vehicle Diagnostic Tester.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
