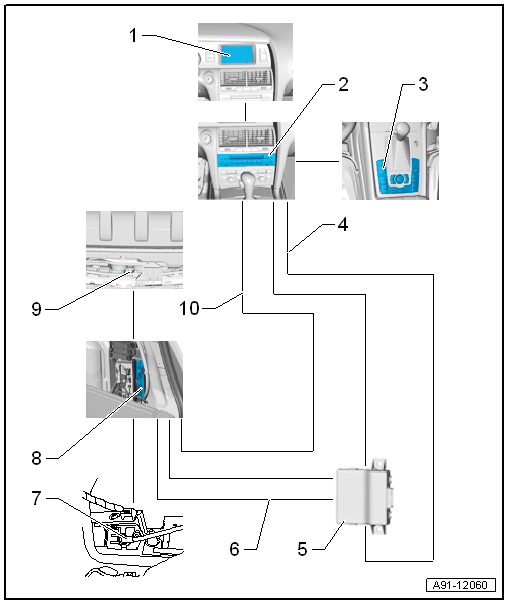

Peripheral Camera System Components
Courtesy of AUDI OF AMERICA, LLC
- Front Information Display Control Head -J685- in center of the Instrument Panel
- Information Electronics Control Module 1 -J794- inside the Instrument Panel
- Multimedia Control Head -E380- in the Center Console
- MOST Bus
- Data Bus On Board Diagnostic Interface -J533- behind the Instrument Panel Cover, on the Driver Side
- CAN Bus (Comfort)
- Rear Peripheral Camera -R246- inside the Rear Lid
- Peripheral Camera Control Module -J928- behind Right Luggage Compartment Side Trim Panel
- Front Peripheral Camera -R243- inside the Front Bumper Cover
- FBAS Wire from the Peripheral Camera Control Module -J928-
