Peripheral View Camera System Component Location

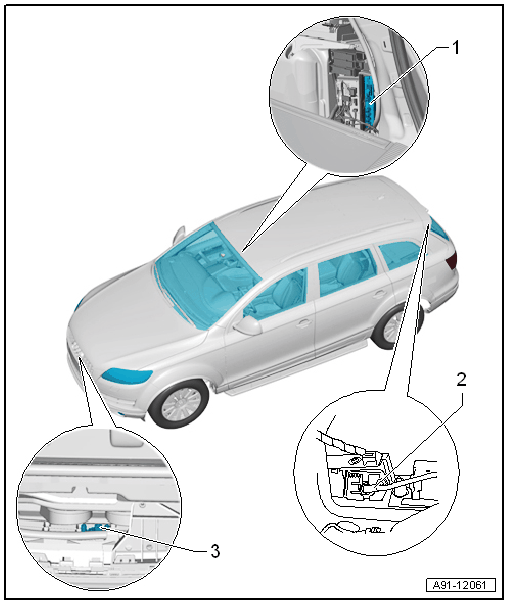

Fig 1: Peripheral View Camera System Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Peripheral Camera Control Module -J928-
   • Connector Assignment, refer to Peripheral Camera Control Module -J928- CONNECTOR ASSIGNMENT .
   • Removing and Installing, refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
   • Calibrating, refer to AREA VIEW CAMERA SYSTEM, CALIBRATING
2. Rear Peripheral Camera -R246-
   • Removing and Installing, refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
   • Calibrating, refer to AREA VIEW CAMERA SYSTEM, CALIBRATING
   • Bolt: 4 Nm
3. Front Peripheral Camera -R243-
   • Removing and Installing, refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
   • Calibrating, refer to AREA VIEW CAMERA SYSTEM, CALIBRATING
   • Bolts: 2 Nm
