Engine Control Module (ECM) Connector End View (J623, T60, T94)

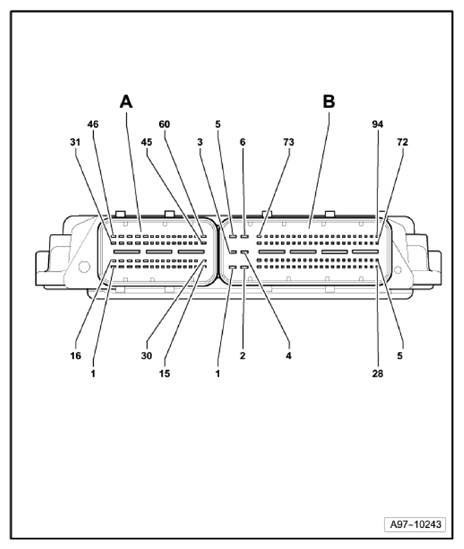

Fig 1: Engine Control Module (ECM) Connector End View (J623, T60, T94)
G10359817Courtesy of AUDI OF AMERICA, LLC
A 60-Pin Connector -T60-, black
B 94-Pin Connector -T94-, black
