Special Tools

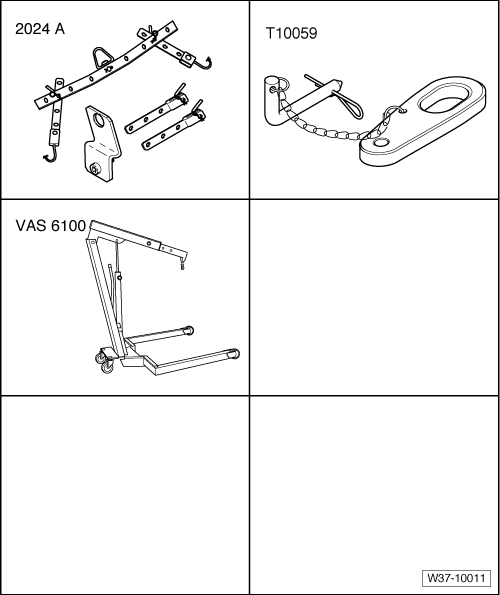

Special tools and workshop equipment required

• Engine Sling2024A
• Engine ShackleT10059
• Shop CraneVAS6100

Special tools and workshop equipment required

• Pry Lever80-200
• Engine Support Bridge10-222A
• Bracket with Spindle and Hook10 - 222 A/10
• Engine Support Bridge - Engine Support 1910-222A/19
• Bracket - Multiple Use30-211A
• Transmission Support3282

Special tools and workshop equipment required

• Transmission Support - Mounting Plate 493282/49
• Engine/Gearbox JackVAG1383A
• Engine Bung SetVAS6122
• Crankshaft SocketT40058
• Engine Support - Basic SetT40091
• Engine Support - Supplement KitT40093A

Special tools and workshop equipment required

• Used Oil Collection And Extraction UnitSMN372500
  Fig 4: Engine and Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Unit InjectorT10055
  Fig 5: Identifying Puller T10055

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Output Shaft Oil SealT10180
  Fig 6: Identifying Press Tool For Shaft Seal T10180

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Output Shaft Oil SealT10186
  Fig 7: Identifying Sleeve For Shaft Seal T10186

  Courtesy of AUDI OF AMERICA, LLC
• Socket And KeyT40031
  Fig 8: Identifying Socket And Key T40031

  Courtesy of AUDI OF AMERICA, LLC
• ATF Filler ToolVAG1924
  Fig 9: ATF Filler Tool V.A.G 1924

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip PliersVAG1275A
  Fig 10: Hose Clamp Pliers VAG 1275

  Courtesy of AUDI OF AMERICA, LLC
• Vehicle Diagnostic Tester
  Fig 11: Identifying Identifying Vehicle Diagnosis, Testing And Information System VAS 5051B

  Courtesy of AUDI OF AMERICA, LLC
