Transmission, Transporting

Special tools and workshop equipment required

Procedure

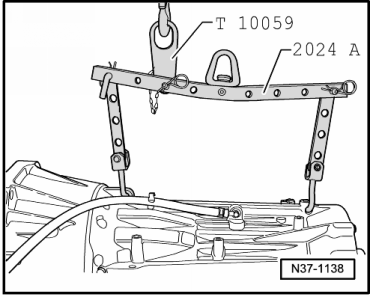

Fig 1: Fastening Engine Sling 2024 A With Shackle T10059 To Shop Crane VAS 6100

Courtesy of AUDI OF AMERICA, LLC

-- Fasten Engine Sling2024A with Engine ShackleT10059 to transmission, as shown in illustration.

WARNING:

Mounting hooks and connecting pins on engine sling must be secured with plug connectors.

-- Engage Engine ShackleT10059 on Shop CraneVAS6100.
