Special Tools

Special tools and workshop equipment required

Courtesy of AUDI OF AMERICA, LLC

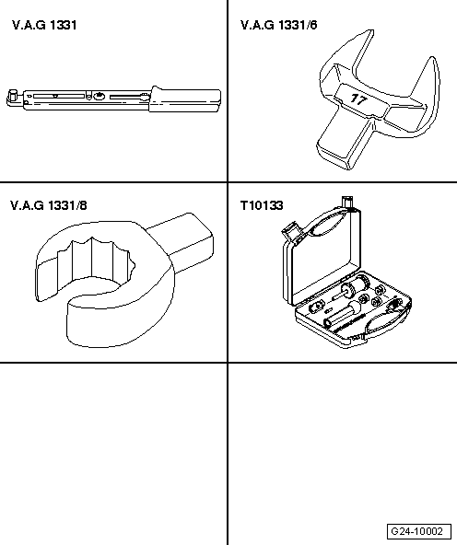

• Torque Wrench -V.A.G 1331-
• SW 17 socket -V.A.G 1331/6-
• SW 14 socket, open ring - V.A.G 1331/8-
• Tool set -T10133- with - T10133/10-
• Pressure gauge K-Jetronic -V.A.G 1318-

  Courtesy of AUDI OF AMERICA, LLC

• Pressure gauge adapter -V.A.G 1318/10-12-
• Remote Control -V.A.G 1348/3A- with adapter cable -V.A.G 1348/3-3-

  Courtesy of AUDI OF AMERICA, LLC

• Vehicle diagnostic, testing, and information system -VAS 5051B-

  Courtesy of AUDI OF AMERICA, LLC

  Adapter cable -V.A.G 1598/39-1-

  Adapter cable -V.A.G 1598/39-2-

  Test box -V.A.G 1598/42-

  Ring spanner 7-piece set for oxygen sensor -3337-

  Courtesy of AUDI OF AMERICA, LLC

Heat Gun 220 V/50 Hz -VAS 1978/14- - 1- with nozzle attachment -2- from Wiring Harness Repair kit -VAS 1978A

Small, commercially available locking pliers -3- (vise grips)
