Throttle Valve Control Module Air Guide, Cleaning, RS6: Removing

Proceed as follows:

Throttle Valve Control Module 2 -J544- (left):

-- Remove the screw -1- and disconnect the connector -2- on the charge air pressure sensor 2 -G447-.

-- Remove the left air guide pipe by loosening the hose clamps -arrows-.

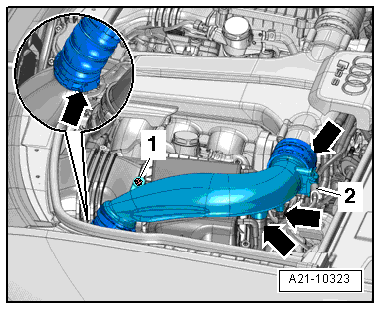

Fig 1: Removing Air Guide Hose

GWWA21-10323

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the screws -arrows- and then remove the throttle valve control module 2 -J544-.

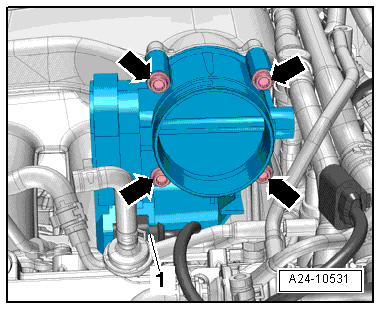

Fig 2: Left Side Throttle Valve Control Module 2 -J544-, Remove/Install Components

GWWA24-10531

Courtesy of AUDI OF AMERICA, LLC

-- Clean the air guide in the throttle valve control module with a lint-free cloth with an appropriate cleaner.

Throttle valve control module 1 -J338- (right):

-- Remove the air guide hose -2- by pressing the release buttons -arrows-.

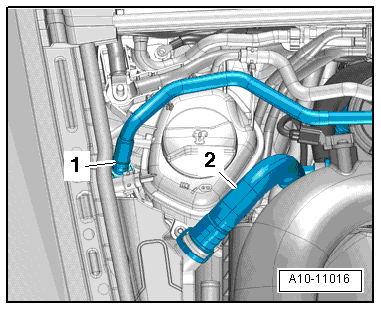

Fig 3: Locating Crankcase Ventilation Hose -1- & Air Guide Hose -2-

GWWA10-11016

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Do not pay attention to -1-.

-- Remove the screw -2- and disconnect the connector -1- on the charge air pressure sensor 2 -G31-.

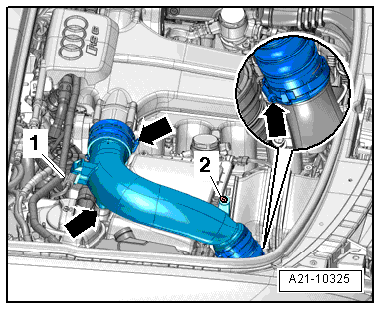

Fig 4: Locating Charge Air Pressure Sensor 2 -G31- And Right Air Guide Pipe

GWWA21-10325

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right air guide pipe by loosening the hose clamps -arrows-.

-- Disconnect the connector -1-.

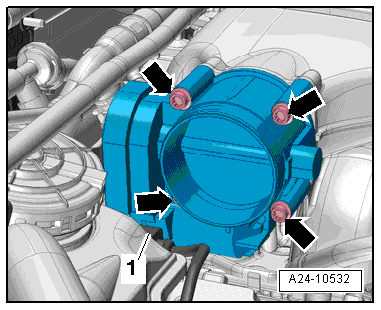

Fig 5: Right Side Throttle Valve Control Module -J338-, Remove/Install Components

GWWA24-10532

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- and then remove the remove the throttle valve control module -J338-.

-- Clean the air guide in the throttle valve control module with a lint-free cloth with an appropriate cleaner.
