Parking Aid Control Module Connector End View (J446, T16a, T12d, T12e)

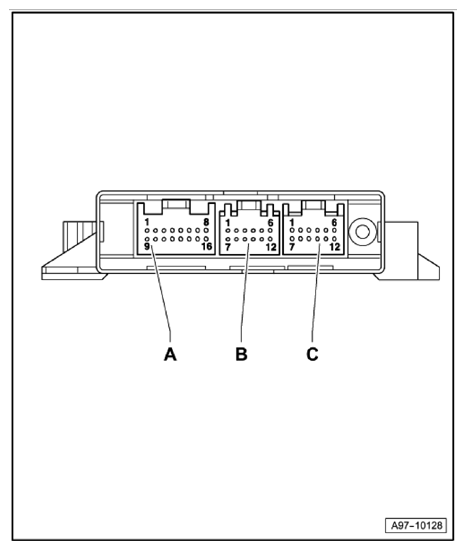

Fig 1: Parking Aid Control Module Connector End View (J446, T16a, T12d, T12e)

Courtesy of AUDI OF AMERICA, LLC

A	16-Pin Connector, brown -T16a-
B	12-Pin Connector, brown -T12d-
C	12-Pin Connector, black -T12e-
