Navigation system, layout

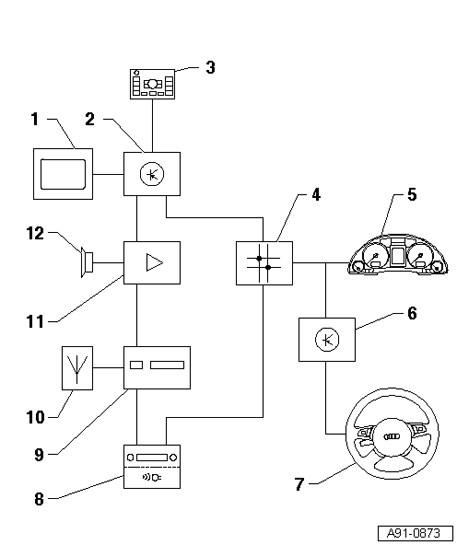

Fig 1: Navigation System- MMI, Layout

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front Information Display Control Head J685 in center instrument panel

2 - Front Information Display Control Head Control Module J523 behind glove compartment

3 - Multimedia Control Head E380 in lower center console

4 - Data Bus On Board Diagnostic Interface J533 behind glove compartment

5 - Instrument Cluster Control Module J285 (instrument cluster) in instrument panel

6 - Steering Column Electronic Systems Control Module J527 on steering column at steering column switches

7 - Multifunction Steering Wheel

8 - Radio R with Speech Input Control Module J507 behind left luggage compartment side trim

9 - Navigation System with CD Drive Control Module J401 behind luggage compartment left side trim

10 - Navigation System Antenna R50 behind the center roof end trim with telephone/SDARS: roof antenna

11 - Digital Sound System Control Module J525 behind left luggage compartment side trim

12 - Sound system
