ATEQ TPMS Reset Procedure

NOTE: On Audi vehicles, the TPMS3 cannot be used to register the TPMS sensors, or reset the TPMS.

NOTE: In order for the TPMS to work, the specified pressures (provided on tire pressure label) must be reprogrammed after every change in air pressure.

NOTE: Whenever tire pressure is adjusted (i.e., when readjusting tire pressure for a load condition), or after every wheel change, the adjusted pressure has to be stored again.

1. Ensure air pressure in all tires is properly adjusted to specification.
2. On the center instrument cluster display, press the CAR function button. See Fig 1.
3. Select "TIRE PRESSURE MONITORING".
4. Select "STORE CURR. TIRE PRESSURES".

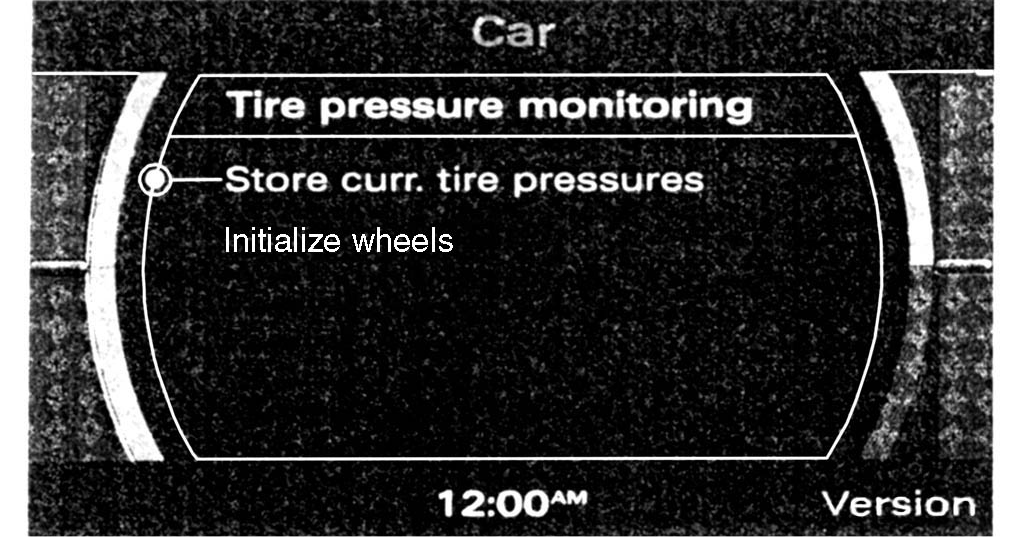

Fig 1: Identifying Tire Pressure Monitoring Display

Courtesy of AUDI OF AMERICA, INC.

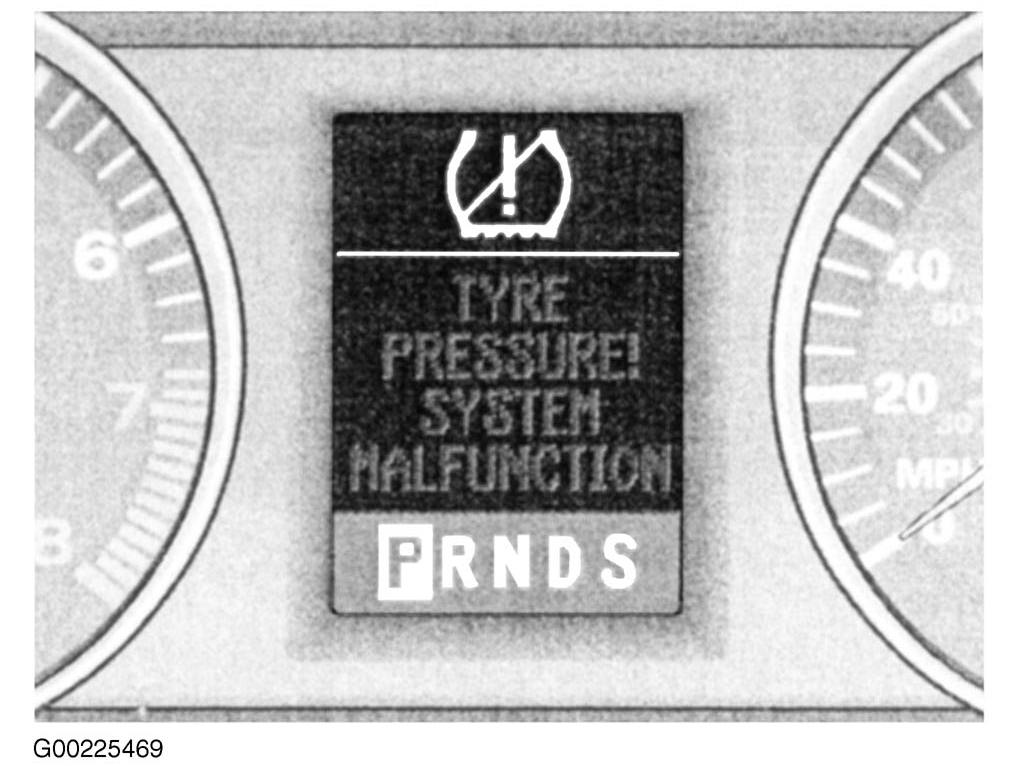

Fig 2: TPMS Malfunction Display (2010 A5 & S5)

Courtesy of AUDI OF AMERICA, INC.
