Comfort System Central Control Module Connector End View (J393)

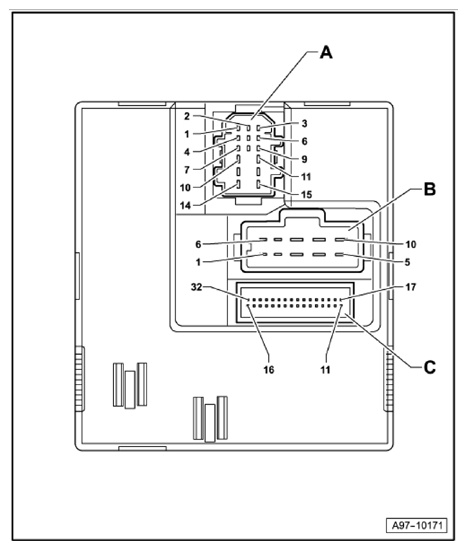

Fig 1: Comfort System Central Control Module Connector End View (J393)
G10359772Courtesy of AUDI OF AMERICA, LLC
A 15-Pin connector -connector A-, black
B 10-Pin connector -connector C-, black
C 32-Pin connector, -connector B-, grey
