Window Guide, Removing And Installing

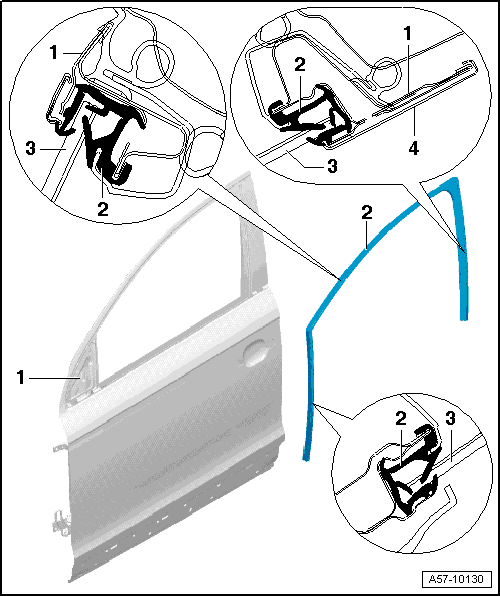

Fig 1: Identifying Window Guide Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

1. Door
2. Window Guide
   • Door window removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
   • For easier installation, coat window guide with a soap solution.
   • Press window guide into guide shafts as shown.
3. Door Window
4. B-Pillar Trim
