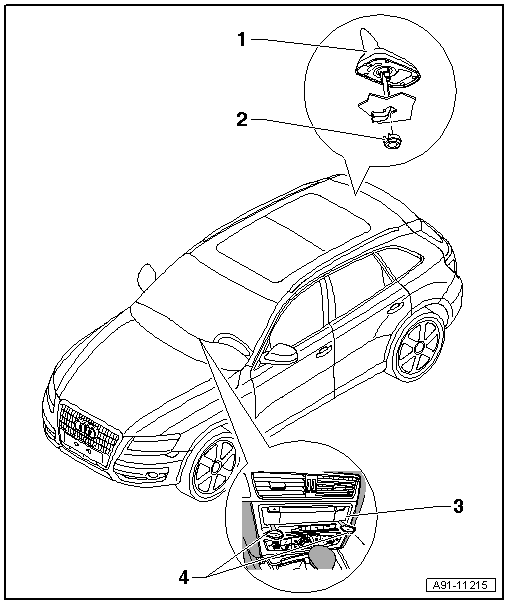

Component Location Overview - Navigation System
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Roof Antenna -R216-
- Antenna systems, refer to ANTENNA SYSTEMS .
- Nut
- 6 Nm
- Information Electronics Control Module 1 -J794-
- Connector assignment, refer to NAVIGATION CONNECTOR ASSIGNMENT .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Radio Removal Tool T10057
