Left Engine Mount: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the seal -1- and remove the plenum chamber cover -2-.

Fig 1: Removing Rubber Seal And Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

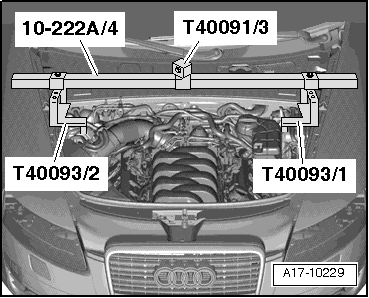

-- Mount the Engine Support Bridge - Engine Support 410-222A/4 with the Engine Support Basic Set T40091/3 as well as the Engine Support Supplement T40093/1 and Engine Support Supplement T40093/2 to the strut towers, as illustrated.

Fig 2: Securing Adapter 10 - 222 A /4 Using Binder T40091/3 As Well As Supports T40093/1 And T40093/2 At Suspension Strut Domes

Courtesy of AUDI OF AMERICA, LLC

Support for left and right side of vehicle is marked.

-- Mount the additional parts from the Engine Support Bridge 10-222A, Engine Support - Basic Set T40091 and Engine Support - Supplement Kit T40093A as illustrated. Position the Engine Support Brackets T40093/3 on the notches on the longitudinal members.

Fig 3: Installing Additional Engine Support Bridge 10-222A

Courtesy of AUDI OF AMERICA, LLC

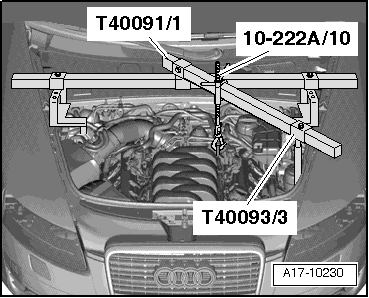

-- Engage the Engine Support - Bracket w/Spindle and hook 10-222A/10 into the left engine lifting eyelet.

-- Tension the engine with the spindle.

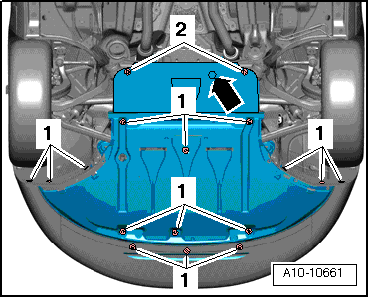

-- Remove the noise insulation, to do this loosen the fasteners -1, 2, arrow-.

Fig 4: View Of Front Noise Insulation And Mounting Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- for the left and right stabilizer mounts and lower the stabilizer bar slightly.

Fig 5: Removing Bolts For Left And Right Stabilizer Bar Mount

Courtesy of AUDI OF AMERICA, LLC

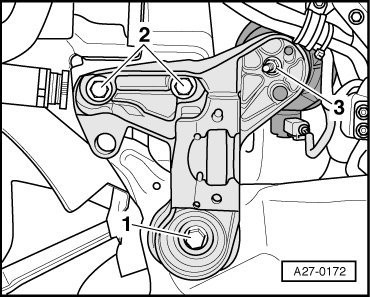

-- Remove the nuts -3-.

Fig 6: Identifying Nuts, Bolts, And Right Side Engine Mount Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- and remove the left engine mount bracket.

NOTE:

The illustration shows the right engine mount bracket instead.

-- Disconnect the electrical connector -1- on the Left Electrohydraulic Engine Mount Solenoid Valve -N144-.

Fig 7: Removing Bolts And Left/Right Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the engine supports with the engine brackets.

-- Remove the nut -arrow- and remove the engine bracket from the engine support.
