Instrument Cluster Control Module -J285-
Instrument Cluster Control Module -J285-

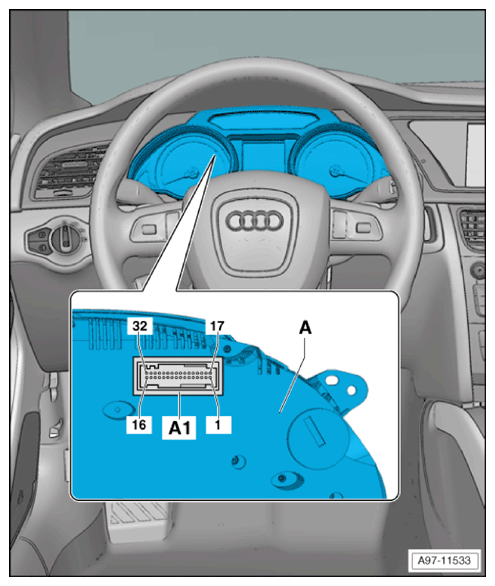

Component Location:
In Instrument Panel.
A
- Instrument Cluster Control Module -J285-
A1
- 32-Pin Connector, grey -T32f-
Courtesy of AUDI OF AMERICA, LLC
