Distance Regulation Control Module -J428-

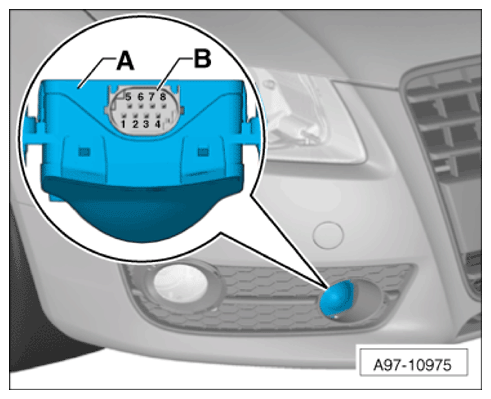

Component Location:

In Bumper, Right Front

  1. Distance Regulation Control Module -J428-
  2. 8-Pin Connector, black -T8a-
G12766881Courtesy of AUDI OF AMERICA, LLC
