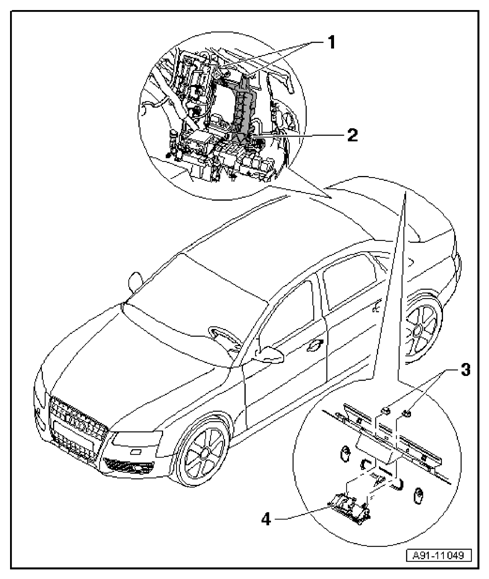

Rearview Camera System Assembly Overview

  1. 2  - Rear View Camera System Control Module -J772-
    • Behind Luggage Compartment Right Side Trim
  2. 4  - Rear View Camera -R189-
    • In The Rear Lid In The Handle
    G12760180Courtesy of AUDI OF AMERICA, LLC
