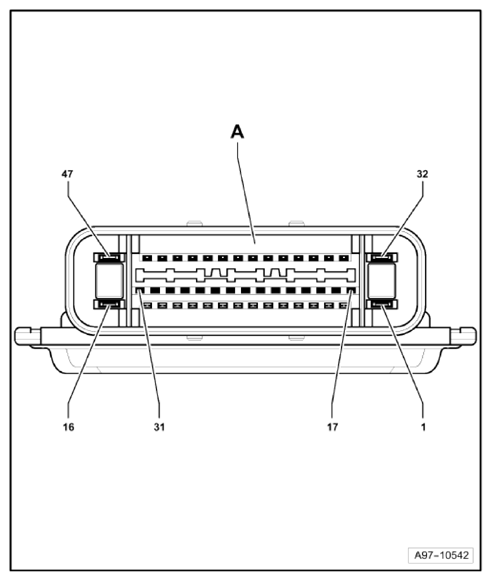

Connector On Electronic Damping Control Module -J250-
Connector On Electronic Damping Control Module -J250-
Electronic Damping Control Module -J250-
Connector:
47-Pin Connector -T47a-
Courtesy of AUDI OF AMERICA, LLC
