Front Information Display Control Head -J685-

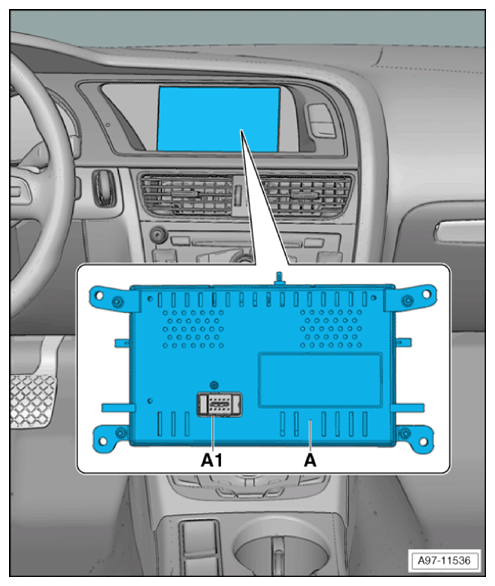

Component Location:
Instrument Panel, Center.
NOTE:
Connector -A1- shows an example of different equipment versions!
- A - Front Information Display Control Head -J685-
- A1 - Connectors for models with MMI Basic through August 2009:
- 10-Pin Connector, Black -T10T-
- A1 - Connectors for models with MMI High through August 2009:
- 22-Pin Connector, black -T22b-
- A1 - Connectors for models with MMI Basic from September 2009:
- 8-Pin Connector, black -T8ai-
- 4-Pin Connector, white -T4ao-
- A1 - Connectors for models with MMI High from September 2009:
- 8-Pin Connector, black -T8ai-
- 4-Pin Connector, black -T4an-
- Connectors for radio chorus (radio low):
- 10-Pin Connector, red -T10u-
- A1 - Connectors for radio concert/symphony (radio mid):
- 10-Pin Connector, black -T10w-
