2.0L CAEB/CAED/CPMA/CPMB Right Side: Notes

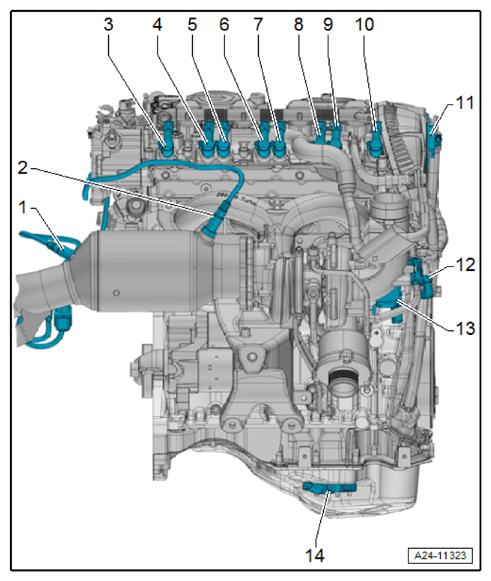

  1. Oxygen Sensor after Three Way Catalytic Converter -G130- and Heater For Oxygen Sensor 1 after Catalytic Converter -Z29-
  2. Heated Oxygen Sensor -G39- and Oxygen Sensor Heater -Z19-
  3. Cam Adjustment Actuator 8 -F373- (for cylinder 4)
  4. Cam Adjustment Actuator 7 -F372- (for cylinder 4)
  5. Cam Adjustment Actuator 5 -F370- (for cylinder 3)
  6. Cam Adjustment Actuator 6 -F371- (for cylinder 3)
  7. Cam Adjustment Actuator 4 -F369- (for cylinder 2)
  8. Cam Adjustment Actuator 3 -F368- (for cylinder 2)
  9. Cam Adjustment Actuator 1 -F366- (for cylinder 1)
  10. Cam Adjustment Actuator 2 -F367- (for cylinder 1)
  11. Camshaft Adjustment Valve 1 -N205-
  12. Wastegate Bypass Regulator Valve -N75-
  13. Turbocharger Recirculation Valve -N249-
  14. Oil Level Thermal Sensor -G266-

    Top → COMP. LOC. ENGINE

    G12766980Courtesy of AUDI OF AMERICA, LLC
