Cooling Fans And Pumps: Notes

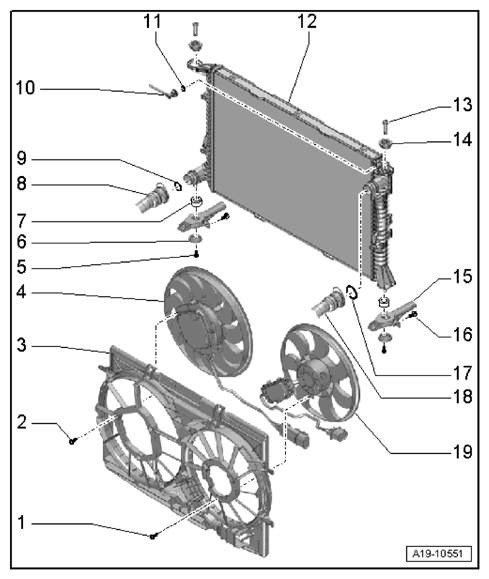

  1. 4  - Coolant Fan -V7-
    • With Coolant Fan Control (FC) Control Module -J293-
  2. 19  - Coolant Fan 2 -V177-
    • With Coolant Fan Control (FC) Control Module 2 -J671-
    G12767066Courtesy of AUDI OF AMERICA, LLC
