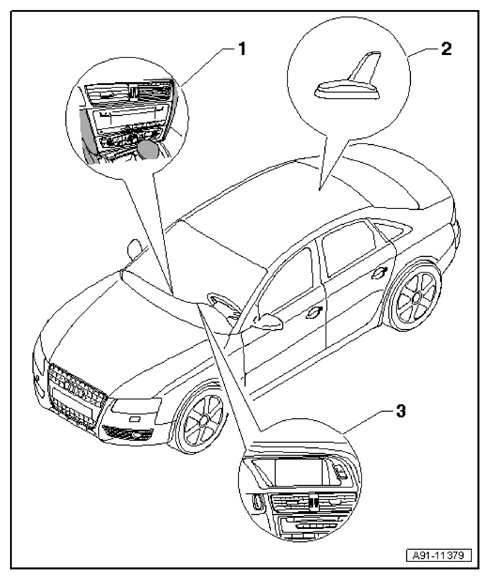

Navigation System Installation Locations

1. Information Electronics Control Module 1 -J794-
   • In center console, at top
2. Radio, Telephone, Navigation System Antenna -R52-
   • Antenna and Antenna Amplifier Locations - Sedan → Item  1
   • Antenna and Antenna Amplifier Locations - Avant → Item  1
3. Front Information Display Control Head -J685-
   • In Center Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC
