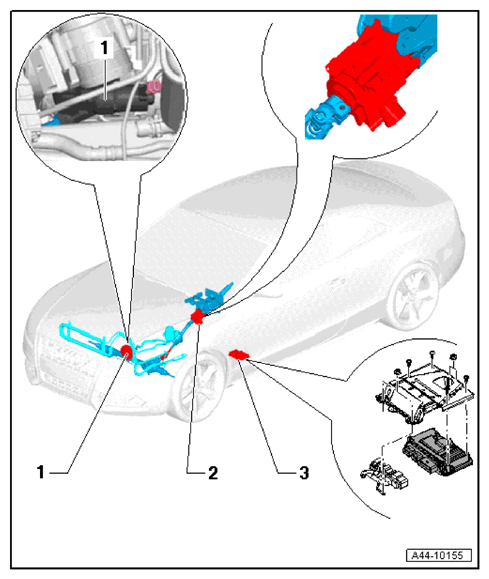

Dynamic Steering Assembly Overview: Notes
- Power Steering Pump -V119-
- The Power Steering Pump And Control Valve Are One Component
- On 4- And 6-Cylinder Vehicles: Installed On The Front Of The Engine On The Left Side (Belt Drive)
- On 8-Cylinder Vehicles: Installed On The Back Of The Engine On The Left Side (Chain Drive)
- Electro-Mechanical Power Steering Motor -V187-
- The Actuator And Steering Column Are One Component And Are Replaced Together. → ELECTRO-MECHANICAL POWER STEERING MOTOR
- Active Steering Control Module -J792-
- Located In The Footwell Under Driver Seat
