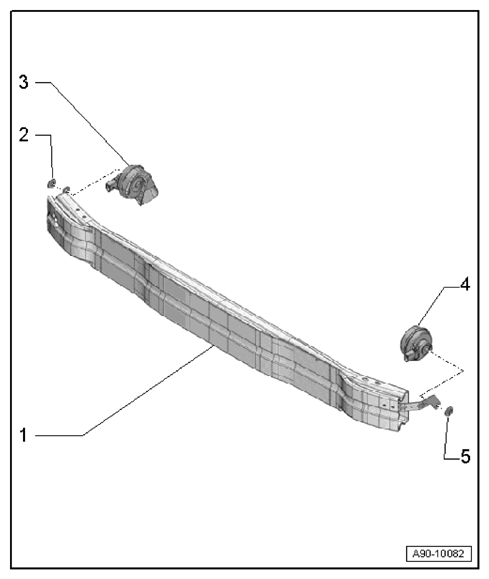

Signal Horns Assembly Overview
Signal Horns Assembly Overview
1
- Impact Member, with signal horn bracket
3
- Low Tone Horn -H7-
4
- High Tone Horn -H2-
Courtesy of AUDI OF AMERICA, LLC
